Easy Closure Control Module Inspection

  1. Remove the easy closure control module.
  2. Inspect for continuity between the latch position, switch terminals using an ohmmeter.
    • If not as specified, replace the easy closure control module.

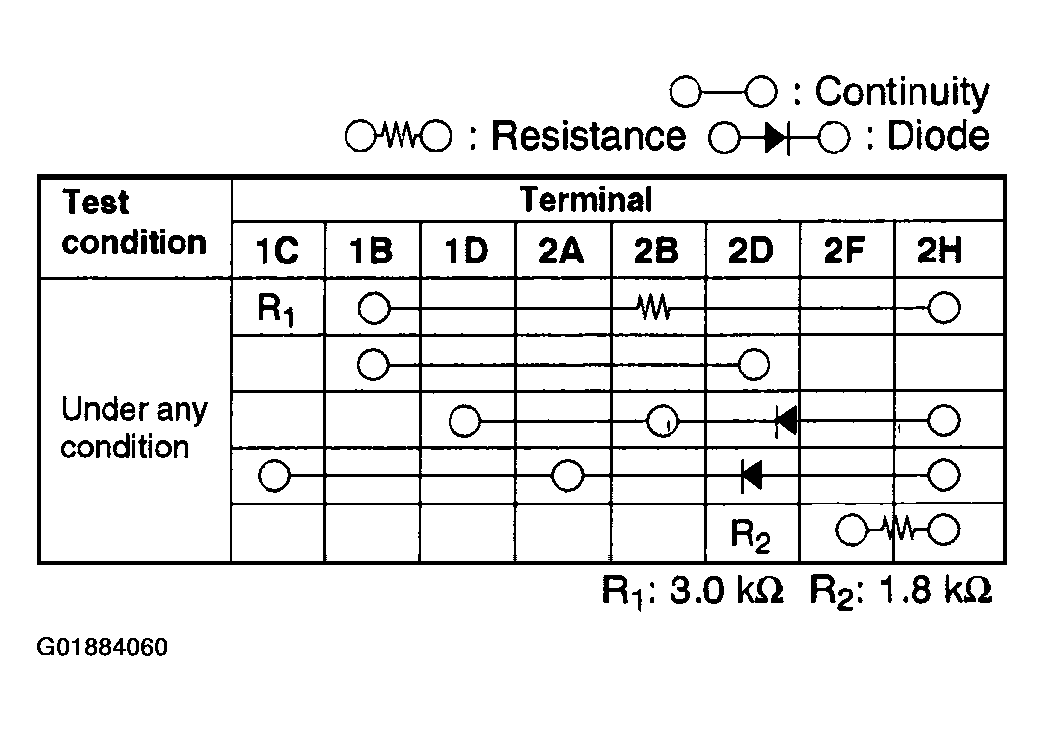

    Fig 1: Easy Closure Control Module Operational Table
    G01884060Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Easy Closure Control Module Circuit & Connector Terminals
    G01884061Courtesy of MAZDA MOTORS CORP.
