Damper Removal/Installation

  1. Raise the vehicle on a hoist.
  2. Remove the four bolts and the damper.

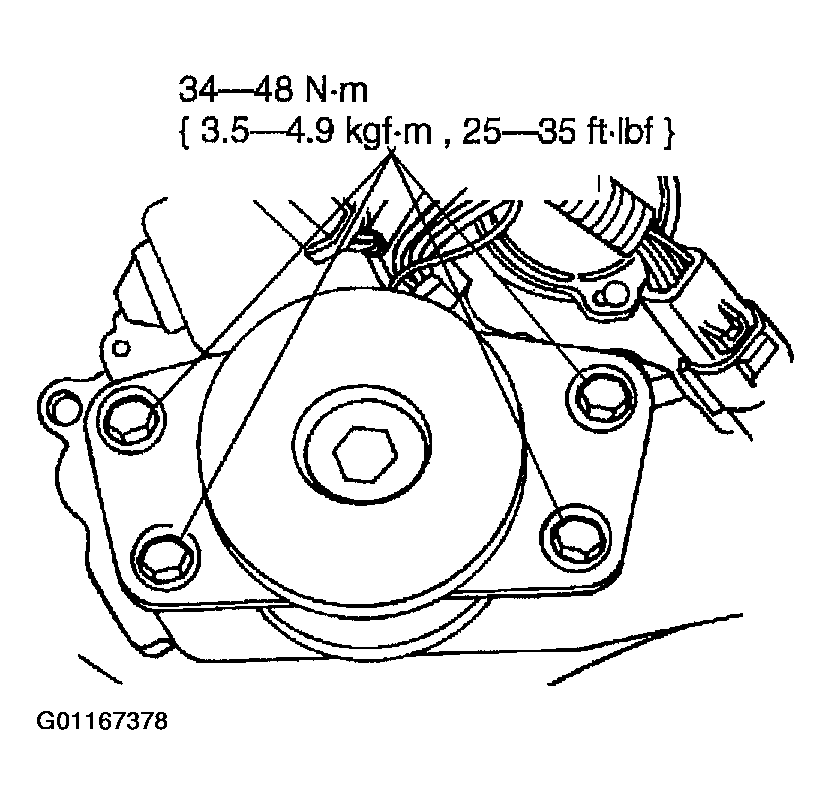

    Fig 1: Damper With Torque Specifications
    G01167378Courtesy of MAZDA MOTORS CORP.
    3. NOTE: If new bolts are not available, coat the threads of the used bolts with a loctite-type sealant.
  3. Install in reverse order of removal.
