CII Pump Removal Note

  1. Remove the pump pulley; see POWER STEERING PUMP PULLEY REMOVAL/INSTALLATION  .
  2. Disconnect the power steering pressure hose.

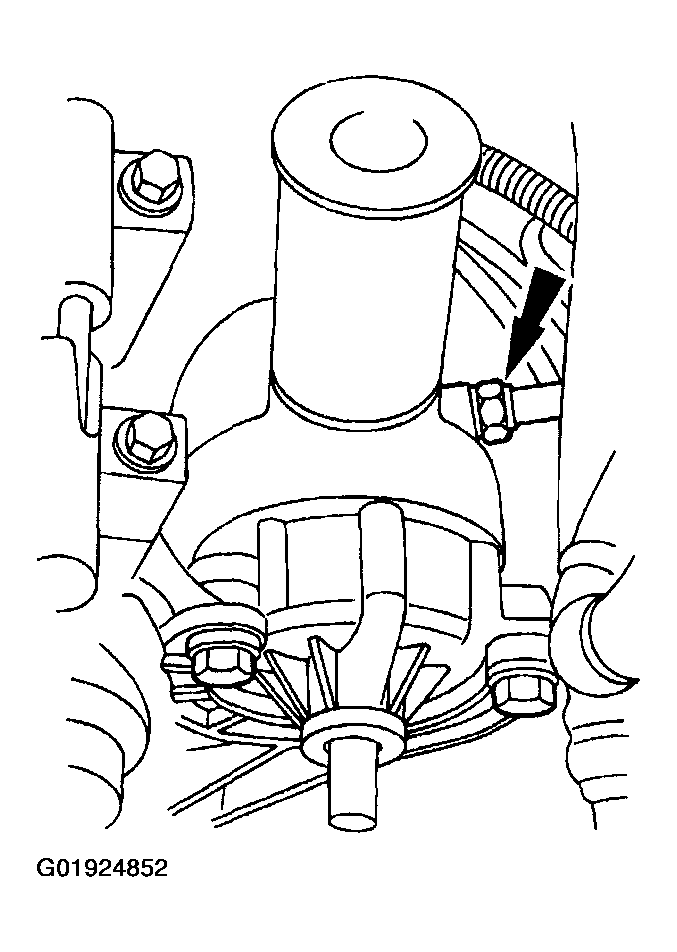

    Fig 1: Disconnecting Power Steering Pressure Hose
    G01924852Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the power steering return hose.
    Fig 2: Disconnecting Power Steering Return Hose
    G01924853Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the power steering return line hose.
  5. Remove the bolts and the power steering pump.
    Fig 3: Disconnecting Power Steering Return Line Hose
    G01924854Courtesy of MAZDA MOTORS CORP.
