Wiper Run/Park Relay Connector End View (C1002)

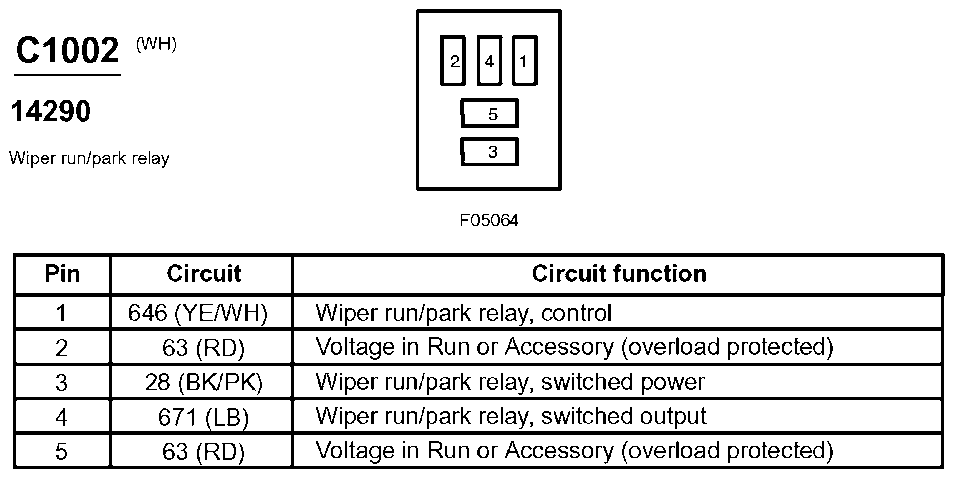

Fig 1: Wiper Run/Park Relay Connector End View (C1002)

G07834808

Courtesy of FORD MOTOR CO.
