Trailer Tow Connector End View (C439)

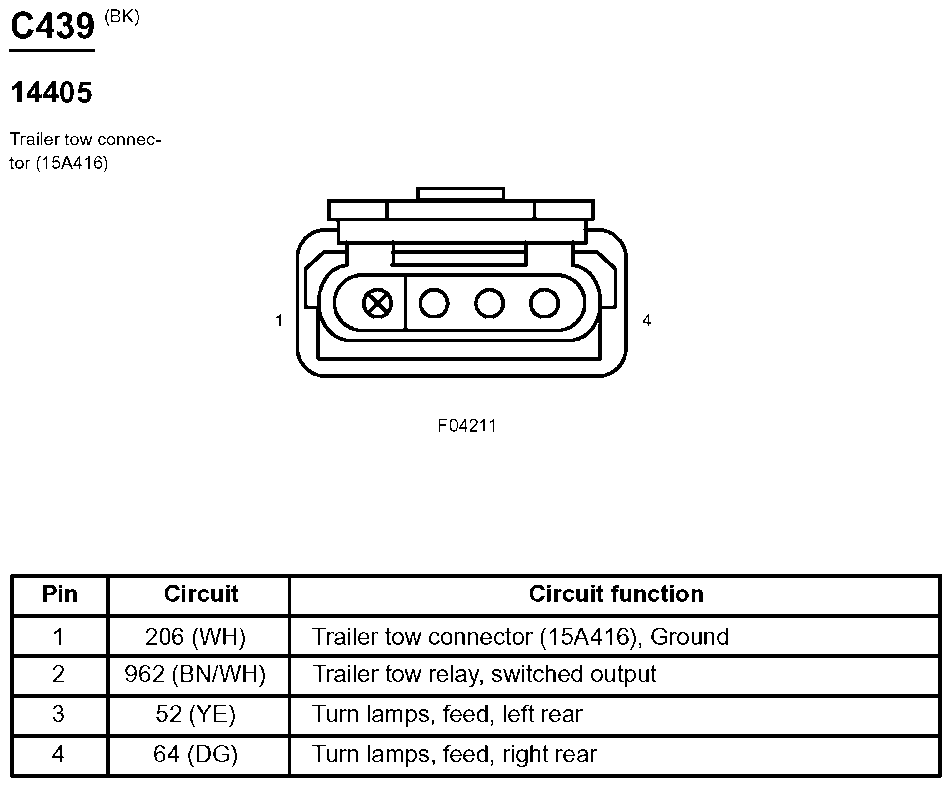

Fig 1: Trailer Tow Connector End View (C439)

G07834776

Courtesy of FORD MOTOR CO.
