Throttle Position Sensor (TPS) Connector End View (C1189)

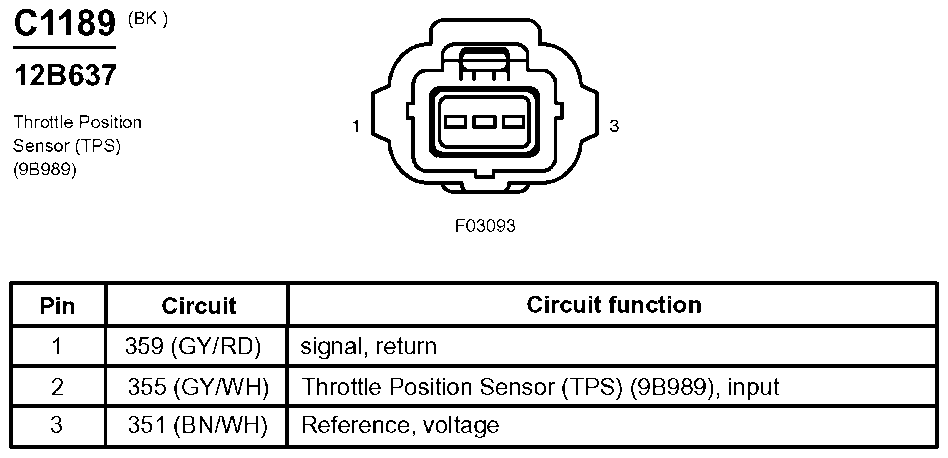

Fig 1: Throttle Position Sensor (TPS) Connector End View (C1189)

G07834857

Courtesy of FORD MOTOR CO.
