Starter Relay Connector End View (C1017)

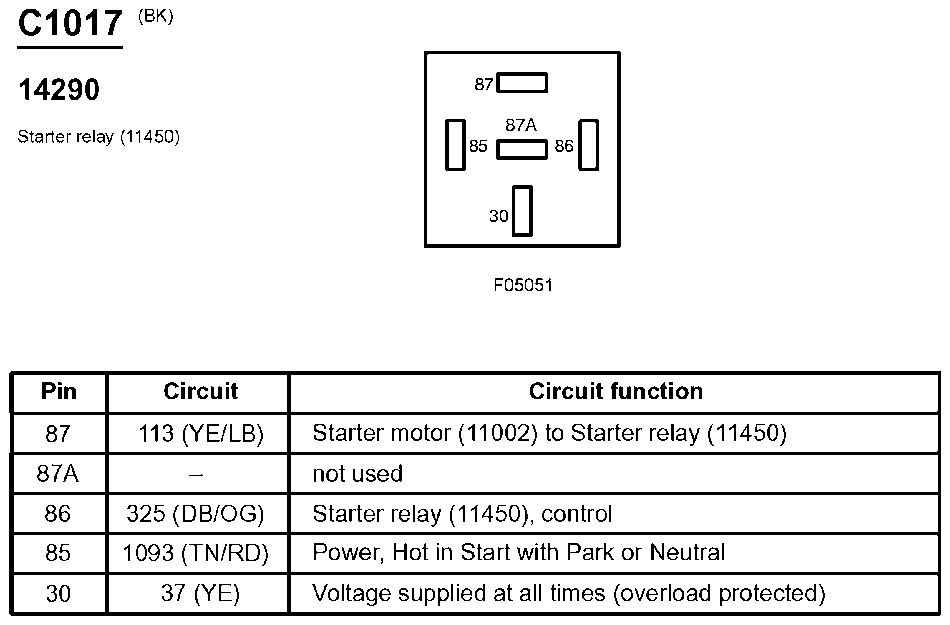

Fig 1: Starter Relay Connector End View (C1017)

G07834814

Courtesy of FORD MOTOR CO.
