Reversing Lamps Switch Connector End View (C169)

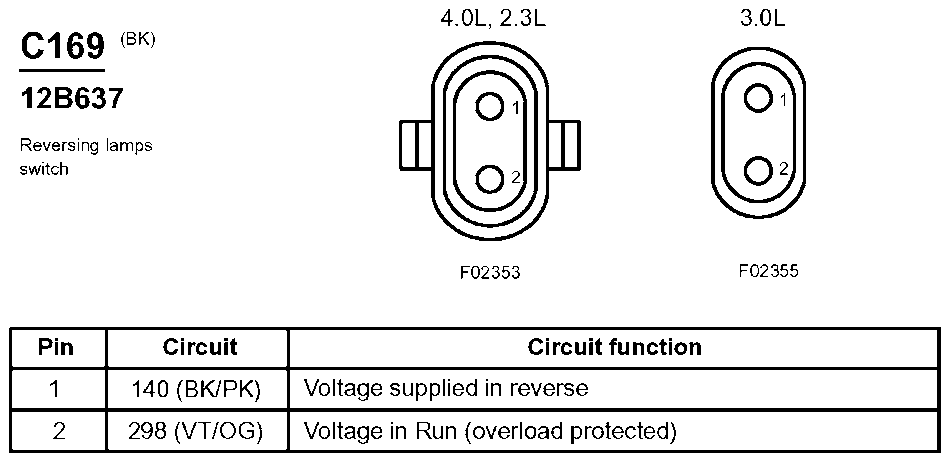

Fig 1: Reversing Lamps Switch Connector End View (C169)

G07834716

Courtesy of FORD MOTOR CO.
