Reversing Lamp, Left Connector End View (C451)

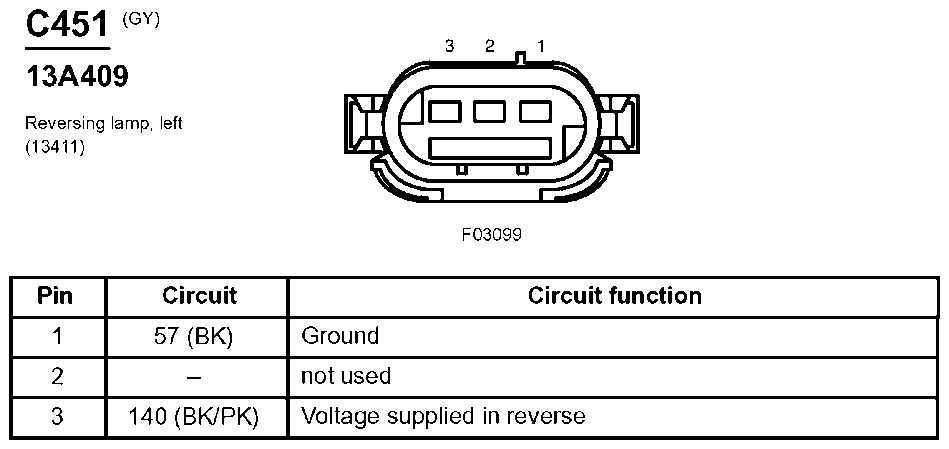

Fig 1: Reversing Lamp, Left Connector End View (C451)

G07834778

Courtesy of FORD MOTOR CO.
