Parking Brake Switch Connector End View (C2015)

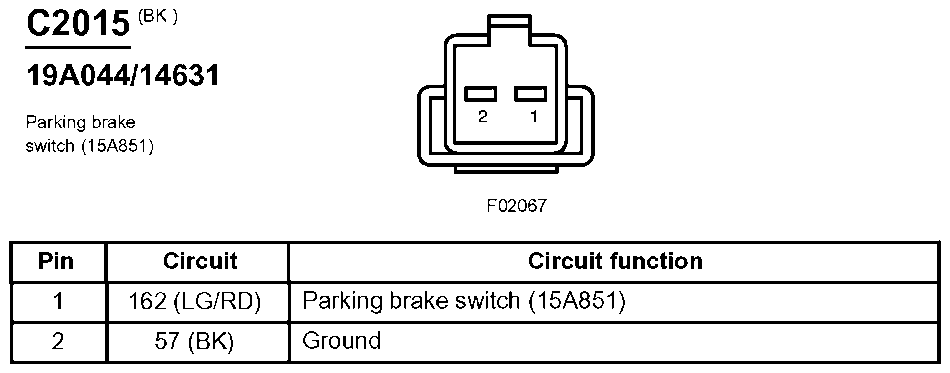

Fig 1: Parking Brake Switch Connector End View (C2015)

G07834860

Courtesy of FORD MOTOR CO.
