Output Shaft Speed (OSS) Sensor Connector End View (C1107)

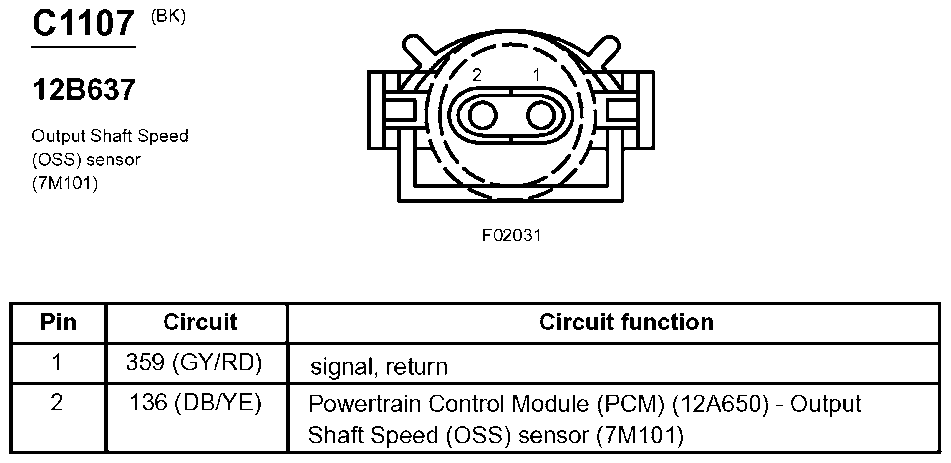

Fig 1: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07834839

Courtesy of FORD MOTOR CO.
