Interior Lamp Relay Connector End View (C2022)

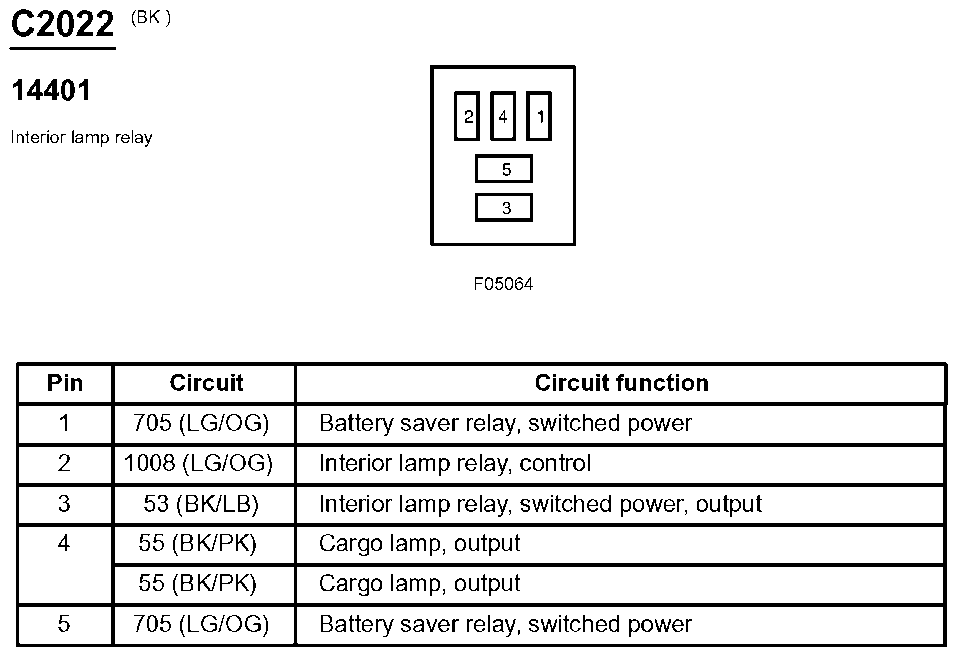

Fig 1: Interior Lamp Relay Connector End View (C2022)

G07834861

Courtesy of FORD MOTOR CO.
