Instrument Cluster Connector End View (C220c)

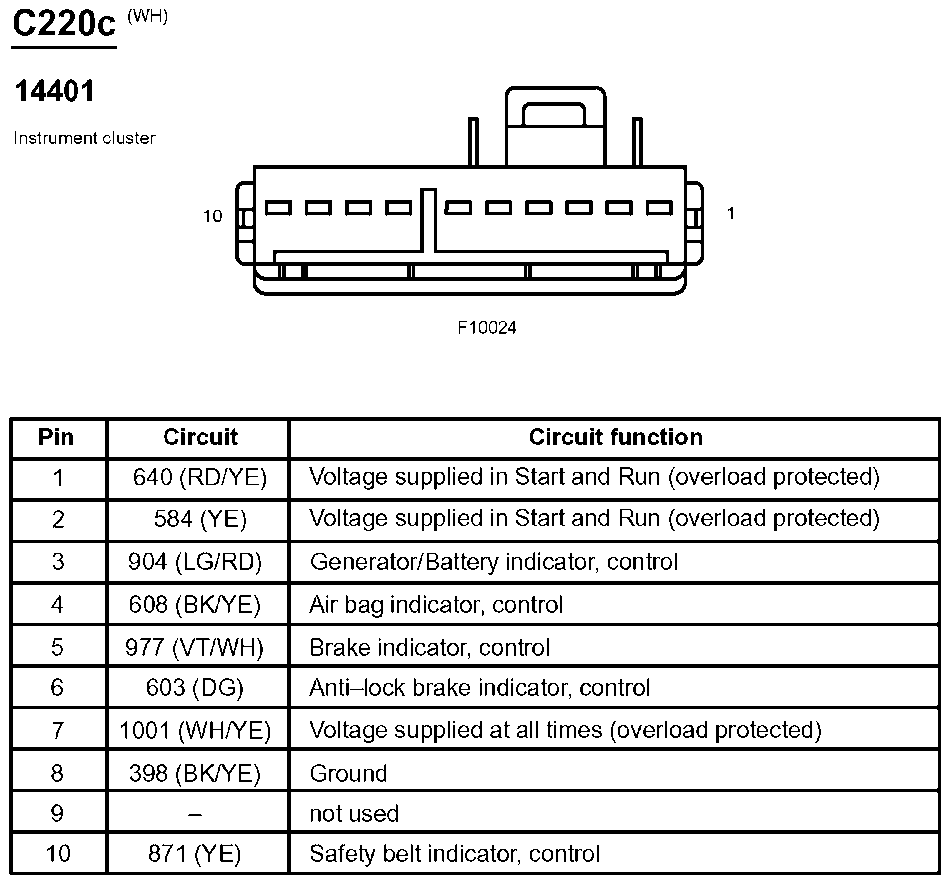

Fig 1: Instrument Cluster Connector End View (C220c)

G07834747

Courtesy of FORD MOTOR CO.
