Instrument Cluster Connector End View (C220b)

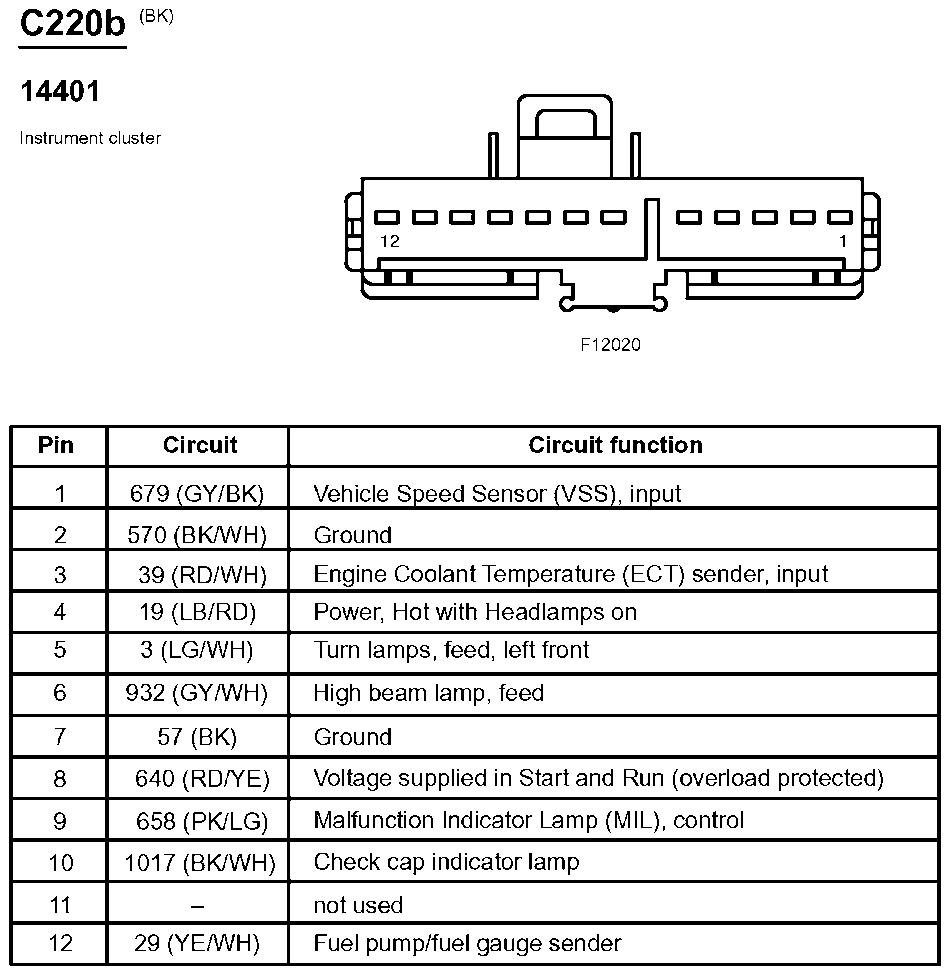

Fig 1: Instrument Cluster Connector End View (C220b)

G07834746

Courtesy of FORD MOTOR CO.
