Instrument Cluster Connector End View (C220a)

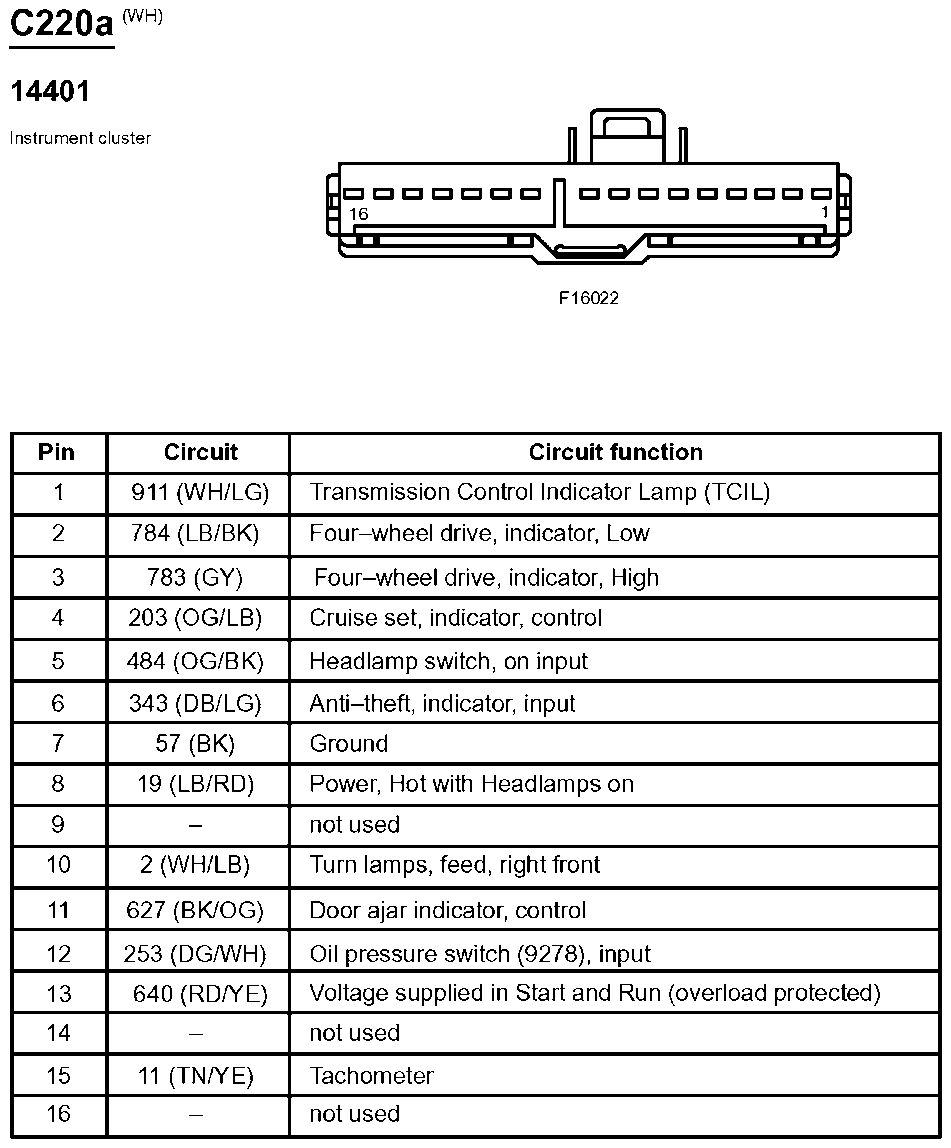

Fig 1: Instrument Cluster Connector End View (C220a)

G07834745

Courtesy of FORD MOTOR CO.
