Ignition Transformer Capacitor 1 Connector End View (C174)

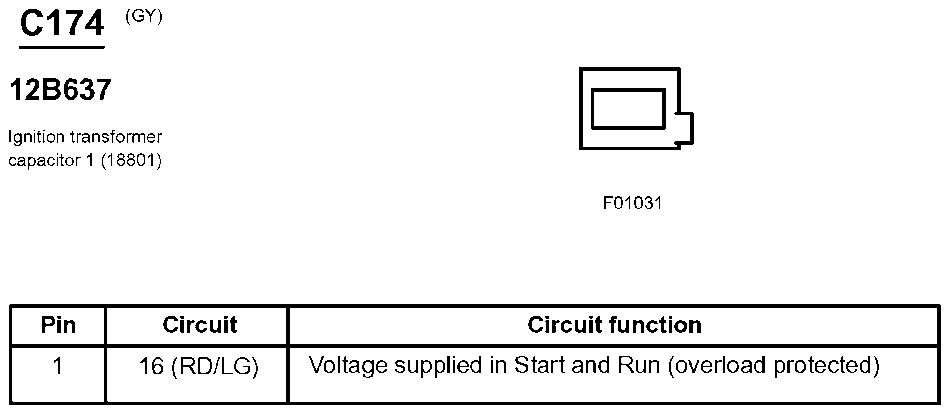

Fig 1: Ignition Transformer Capacitor 1 Connector End View (C174)

G07834719

Courtesy of FORD MOTOR CO.
