Fog Lamp, Left Front Connector End View (C152)

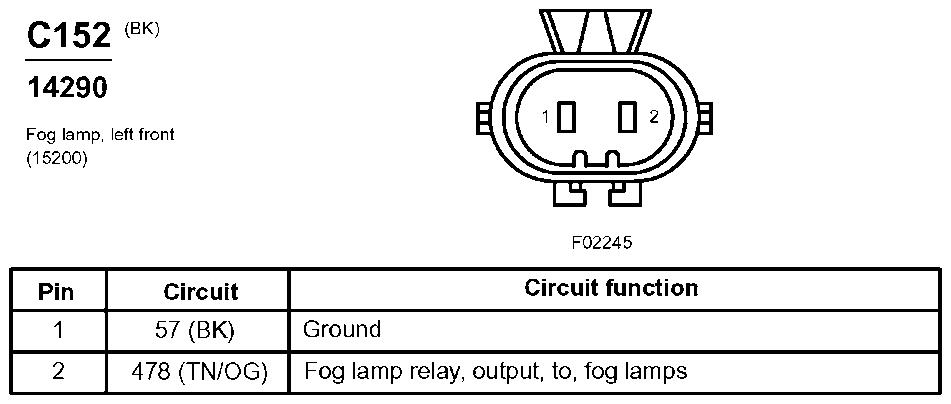

Fig 1: Fog Lamp, Left Front Connector End View (C152)

G07834710

Courtesy of FORD MOTOR CO.
