Fog Lamp Relay Connector End View (C1007)

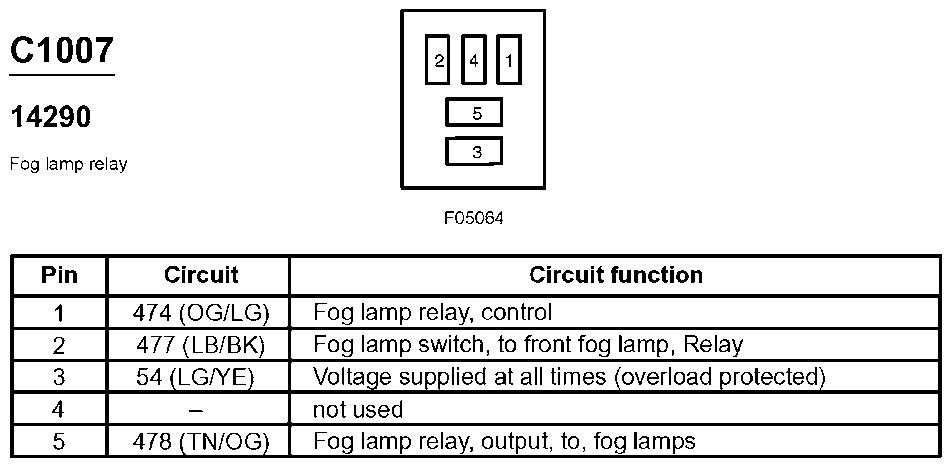

Fig 1: Fog Lamp Relay Connector End View (C1007)

G07834810

Courtesy of FORD MOTOR CO.
