Crankshaft Position Sensor Connector End View (C1120)

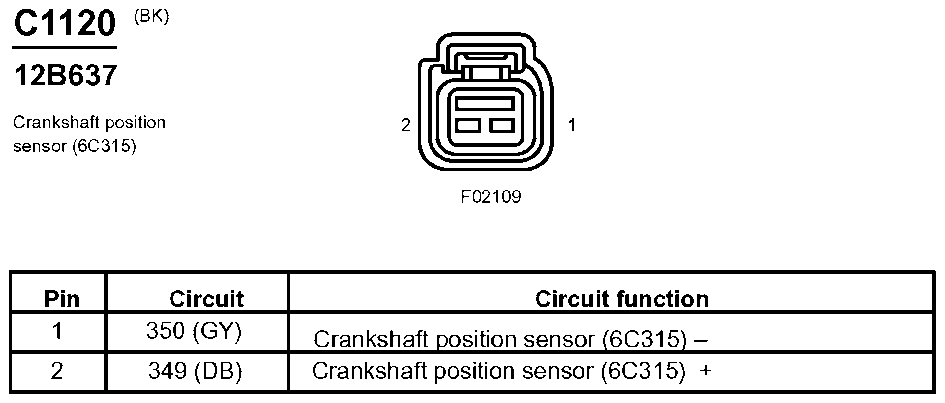

Fig 1: Crankshaft Position Sensor Connector End View (C1120)

G07834840

Courtesy of FORD MOTOR CO.
