Brake Pedal Position Switch Connector End View (C278)

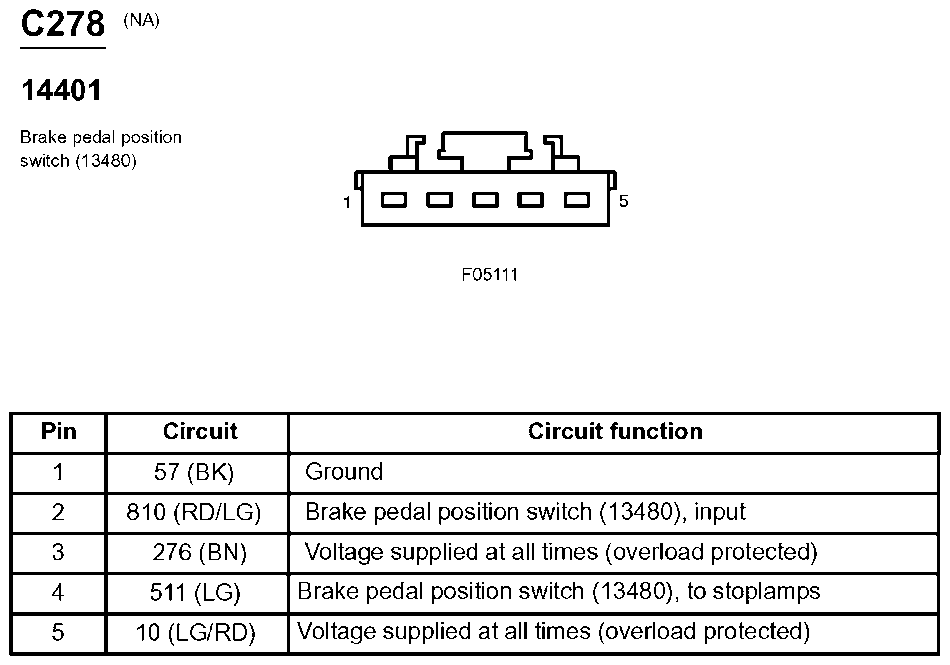

Fig 1: Brake Pedal Position Switch Connector End View (C278)

G07834754

Courtesy of FORD MOTOR CO.
