A/C High Pressure Switch Connector End View (C1078)

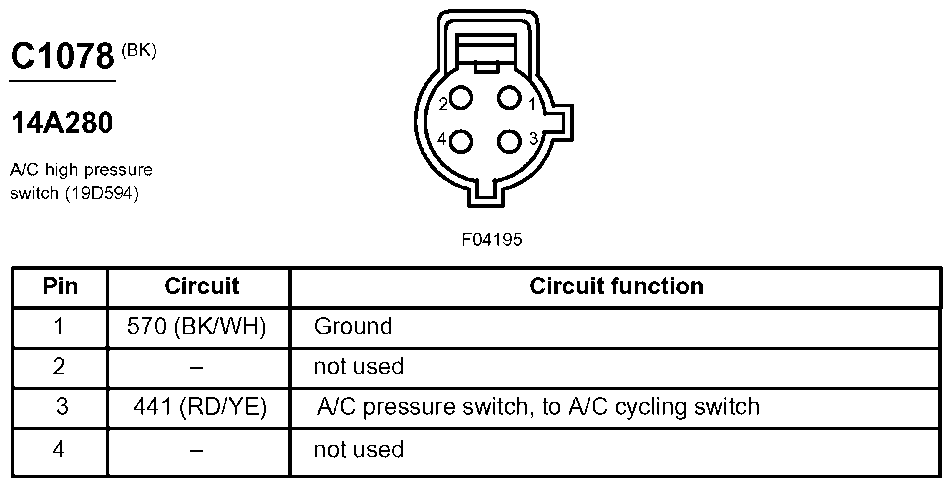

Fig 1: A/C High Pressure Switch Connector End View (C1078)

G07834834

Courtesy of FORD MOTOR CO.
