Master Window Adjust Switch Connector End View (C504)

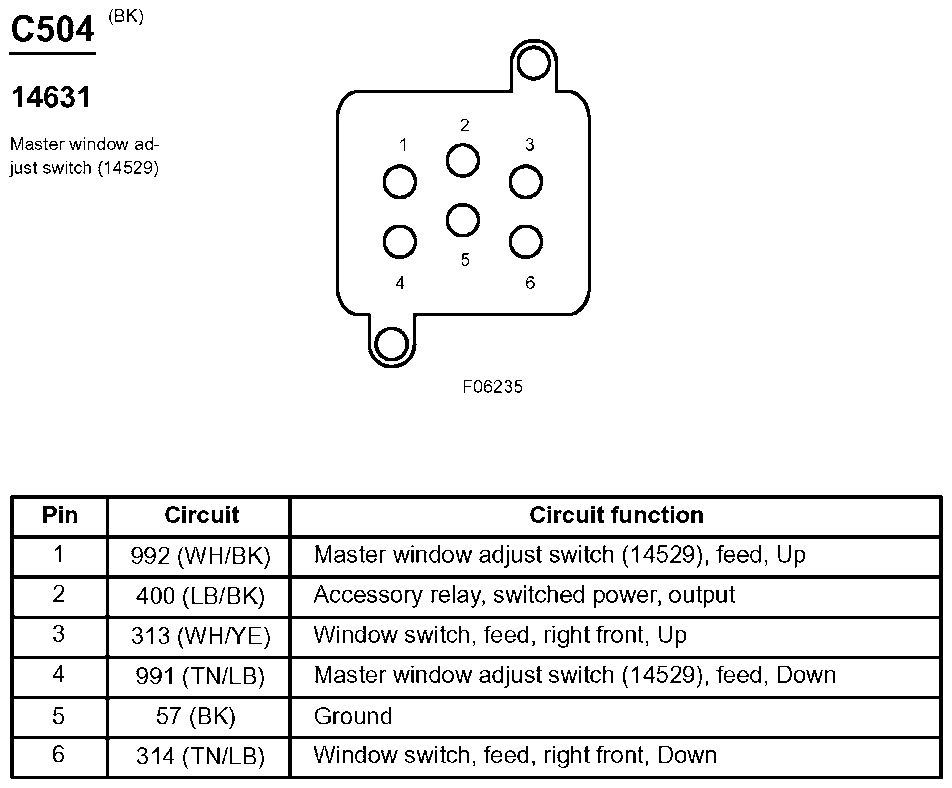

Fig 1: Master Window Adjust Switch Connector End View (C504)

G07834783

Courtesy of FORD MOTOR CO.
