Generator Connector End View (C102a)

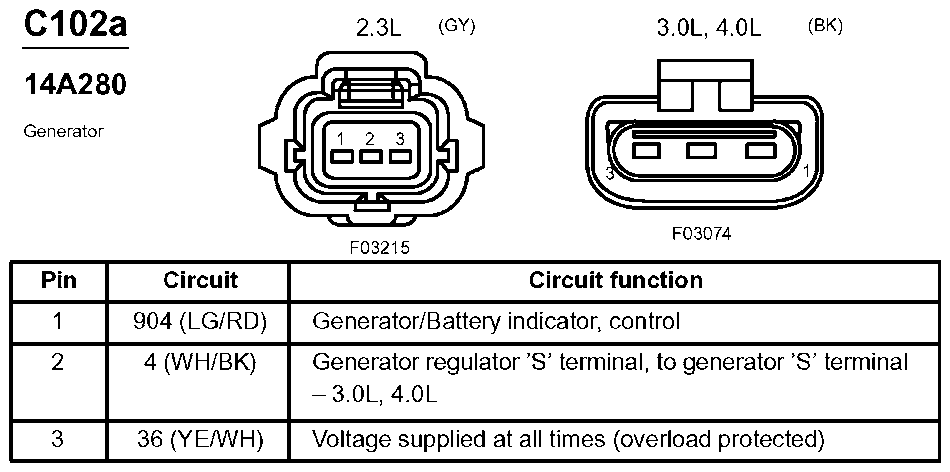

Fig 1: Generator Connector End View (C102a)

G07834691

Courtesy of FORD MOTOR CO.
