Brake Shift Interlock Connector End View (C2008)

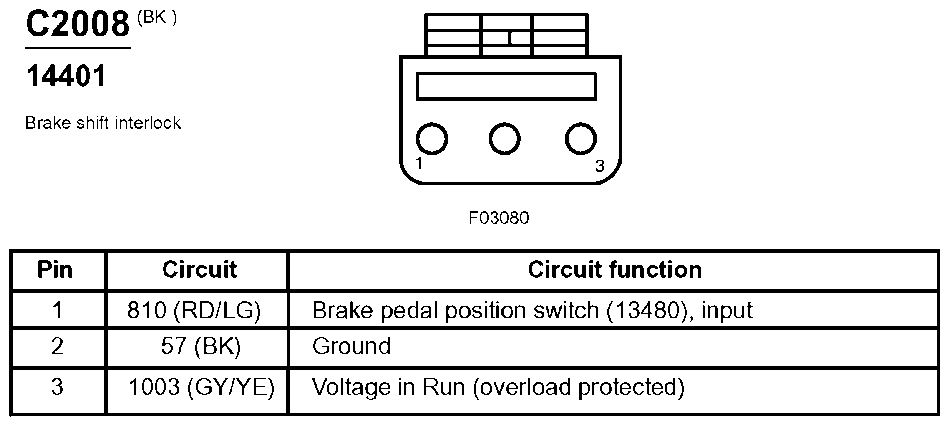

Fig 1: Brake Shift Interlock Connector End View (C2008)

G07834859

Courtesy of FORD MOTOR CO.
