Audio Unit Connector End View (C290b)

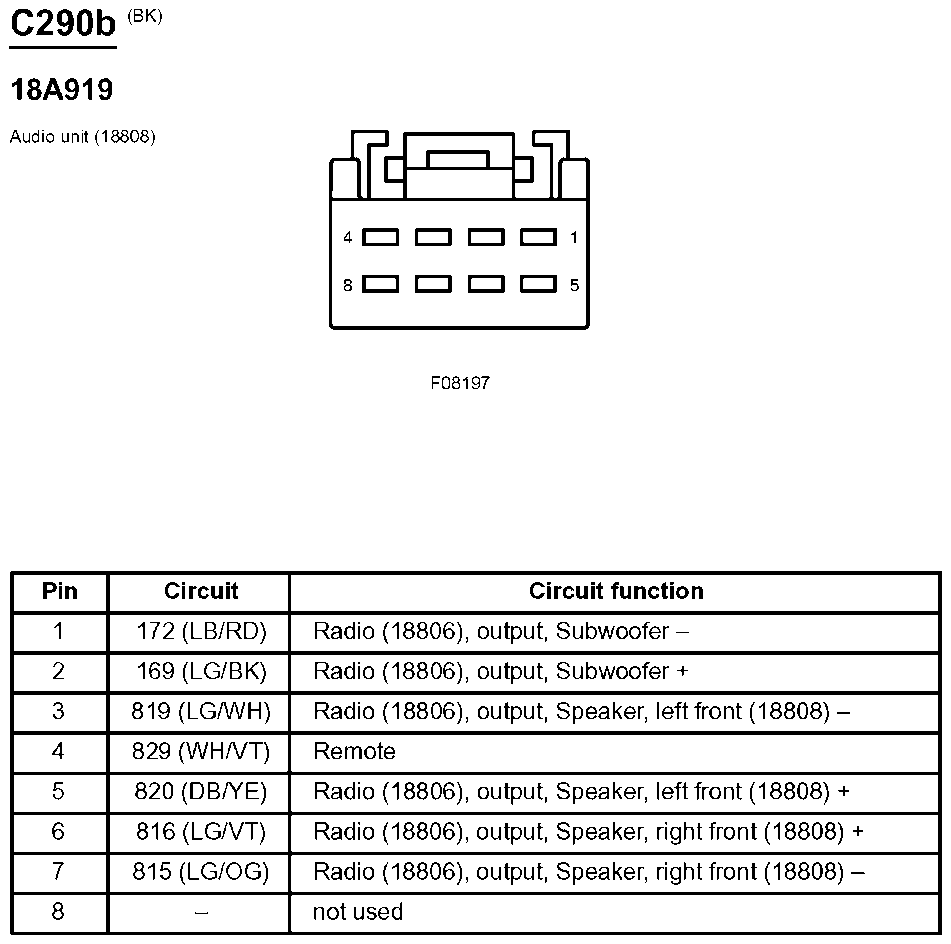

Fig 1: Audio Unit Connector End View (C290b)

G07834762

Courtesy of FORD MOTOR CO.
