A/C Compressor Cycling Switch Connector End View (C1081)

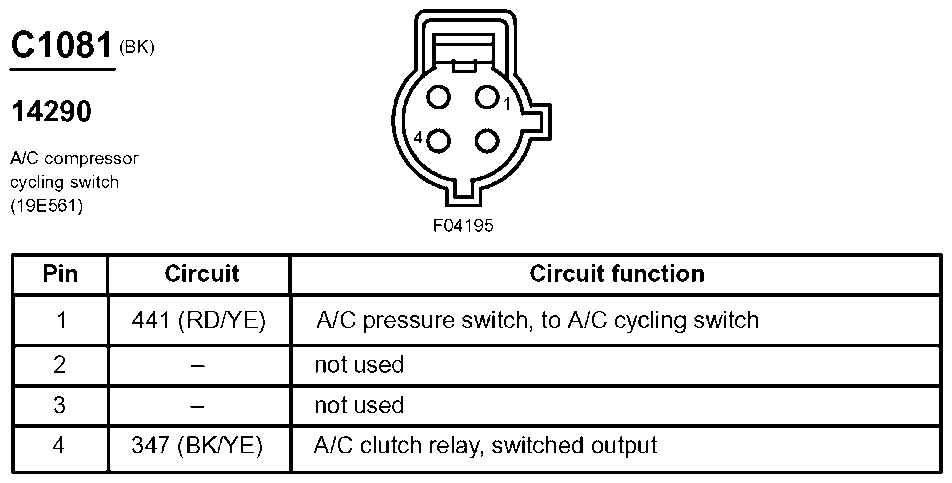

Fig 1: A/C Compressor Cycling Switch Connector End View (C1081)

G07834835

Courtesy of FORD MOTOR CO.
