Axle Structural View Rear (Standard)

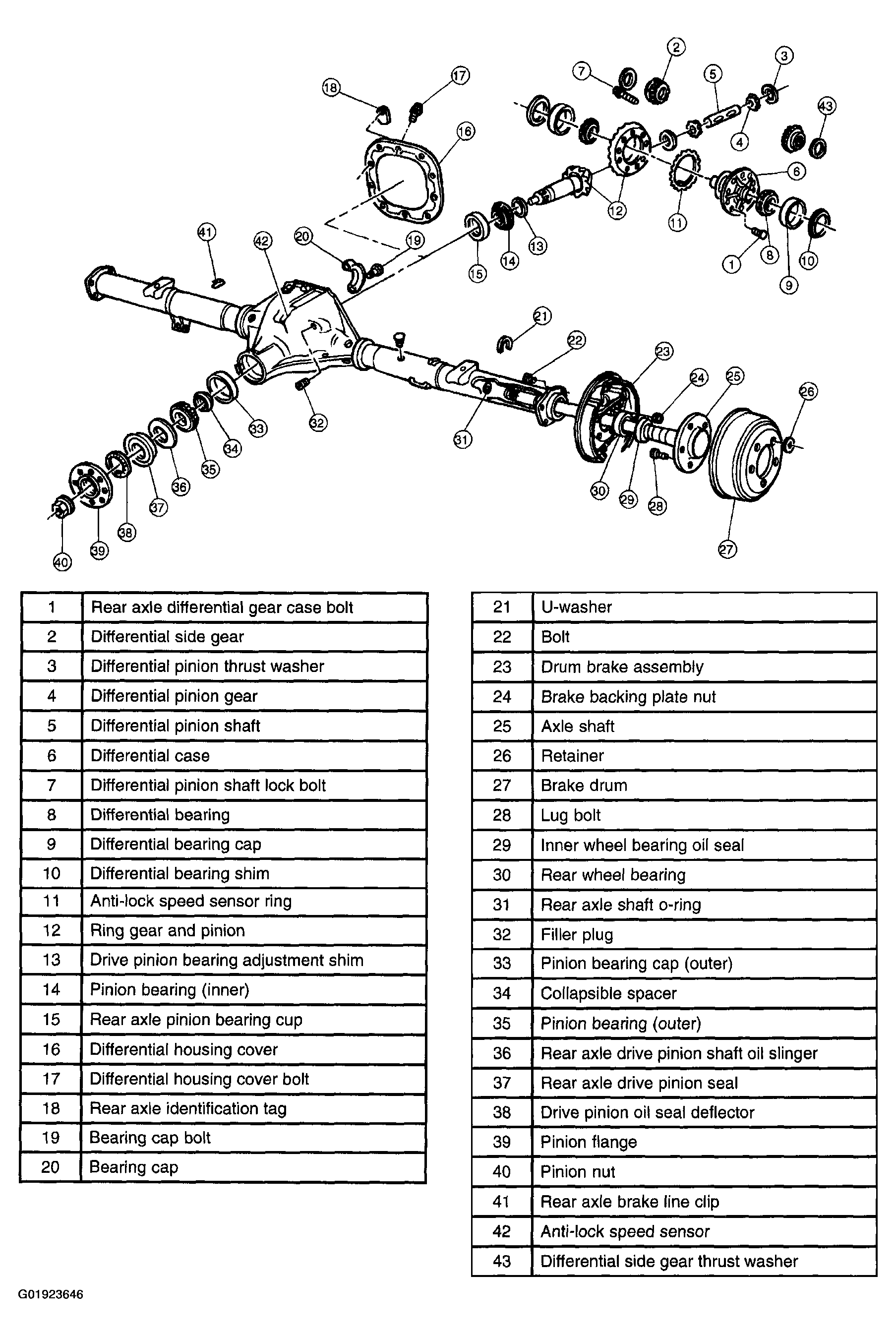

Fig 1: Exploded View Of Rear Axle Assembly (Standard)

G01923646

Courtesy of MAZDA MOTORS CORP.
