Door Handle Outside Front Removal/Installation

  1. Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Remove the watershield.
    NOTE:
    • The front door glass must be completely up.
  3. Disconnect the front door lock to door handle rod (1).
  4. Drill out the two rivets (2).
  5. Remove the outside door handle.

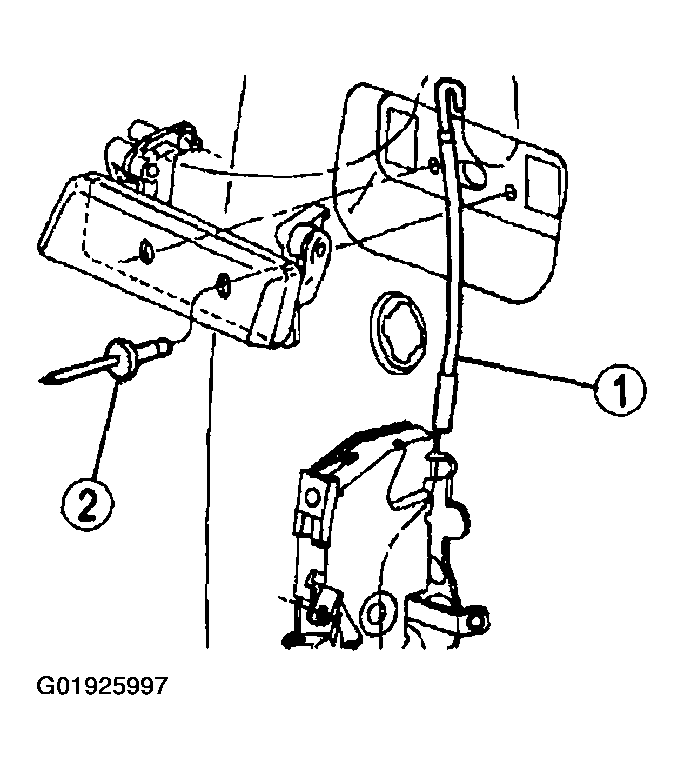

    Fig 1: Removing Outside Door Handle
    G01925997Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
