Door Disarm Switch Removal/Installation

  1. Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Position the watershield aside.
  3. Remove the door disarm switch.
    1. Remove the E-clip.
    2. Remove the door lock rod actuator.
    3. Disconnect the electrical connector.

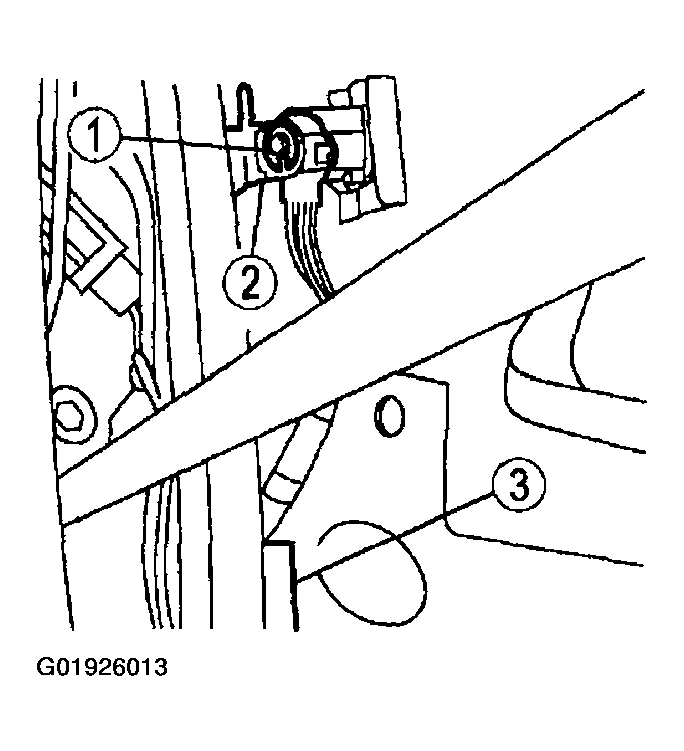

    Fig 1: Disconnecting Electrical Connector
    G01926013Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The door disarm switch locator mark must be in the down position prior to installation.
    Fig 2: Identifying Door Disarm Switch Locator Mark
    G01926014Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
