Audio Unit Removal/Inspection

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
  2. Using the special tool, remove the audio unit.

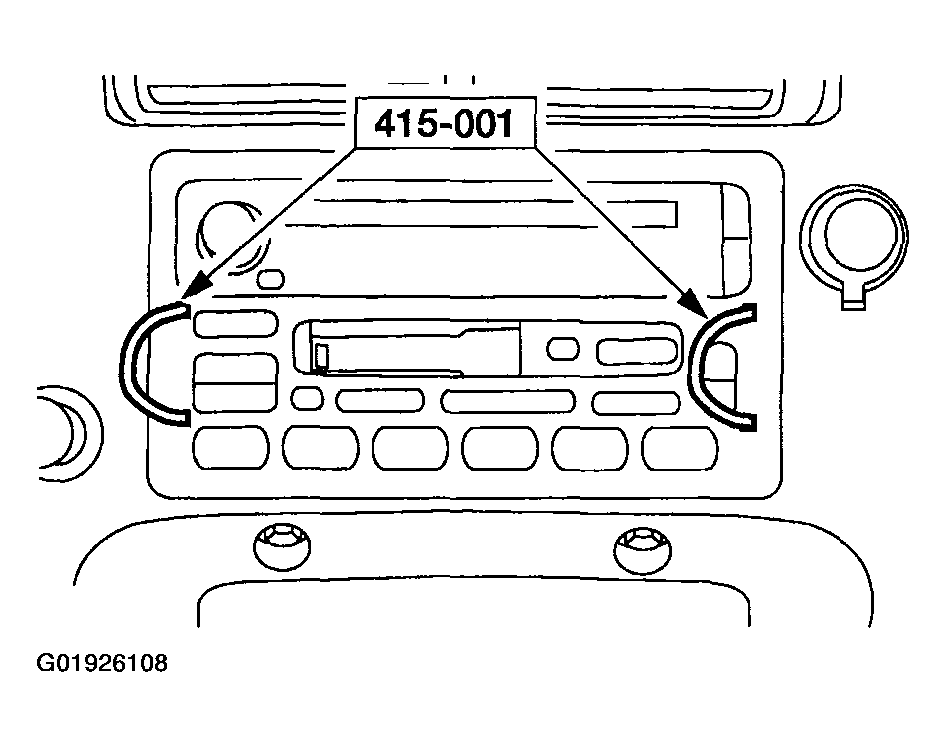

    Fig 1: Removing Audio Unit
    G01926108Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connectors.

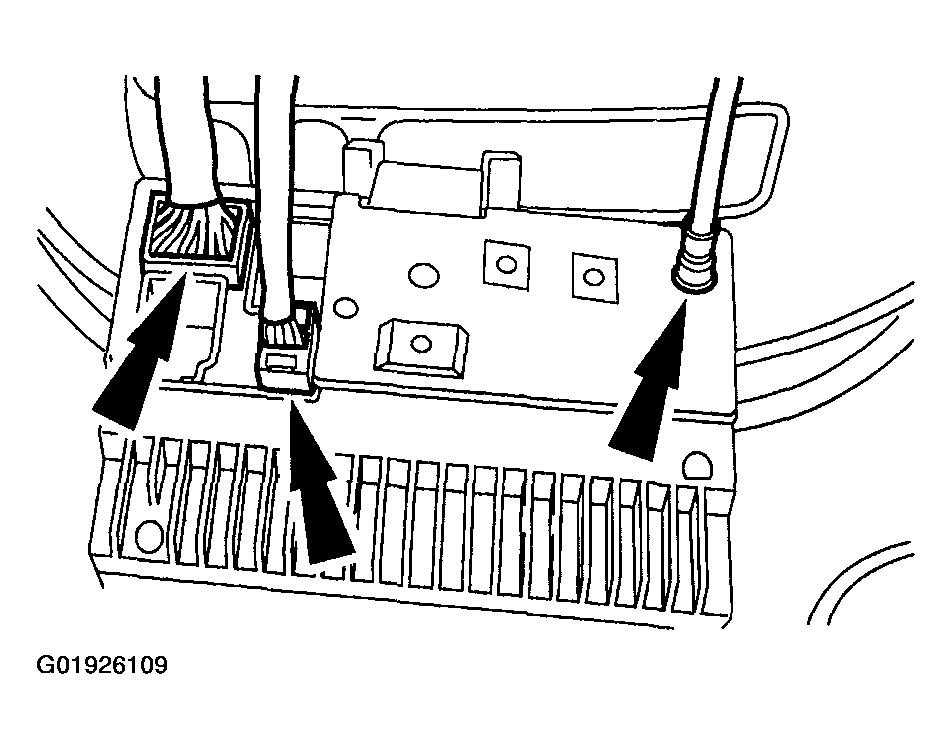

    Fig 2: Disconnecting Connectors
    G01926109Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
