External Sealing: Notes
The transmission has the following parts to prevent external fluid leakage:
gaskets
lip-type seals
O-ring seals
seal rings
seal grommets
thread sealant

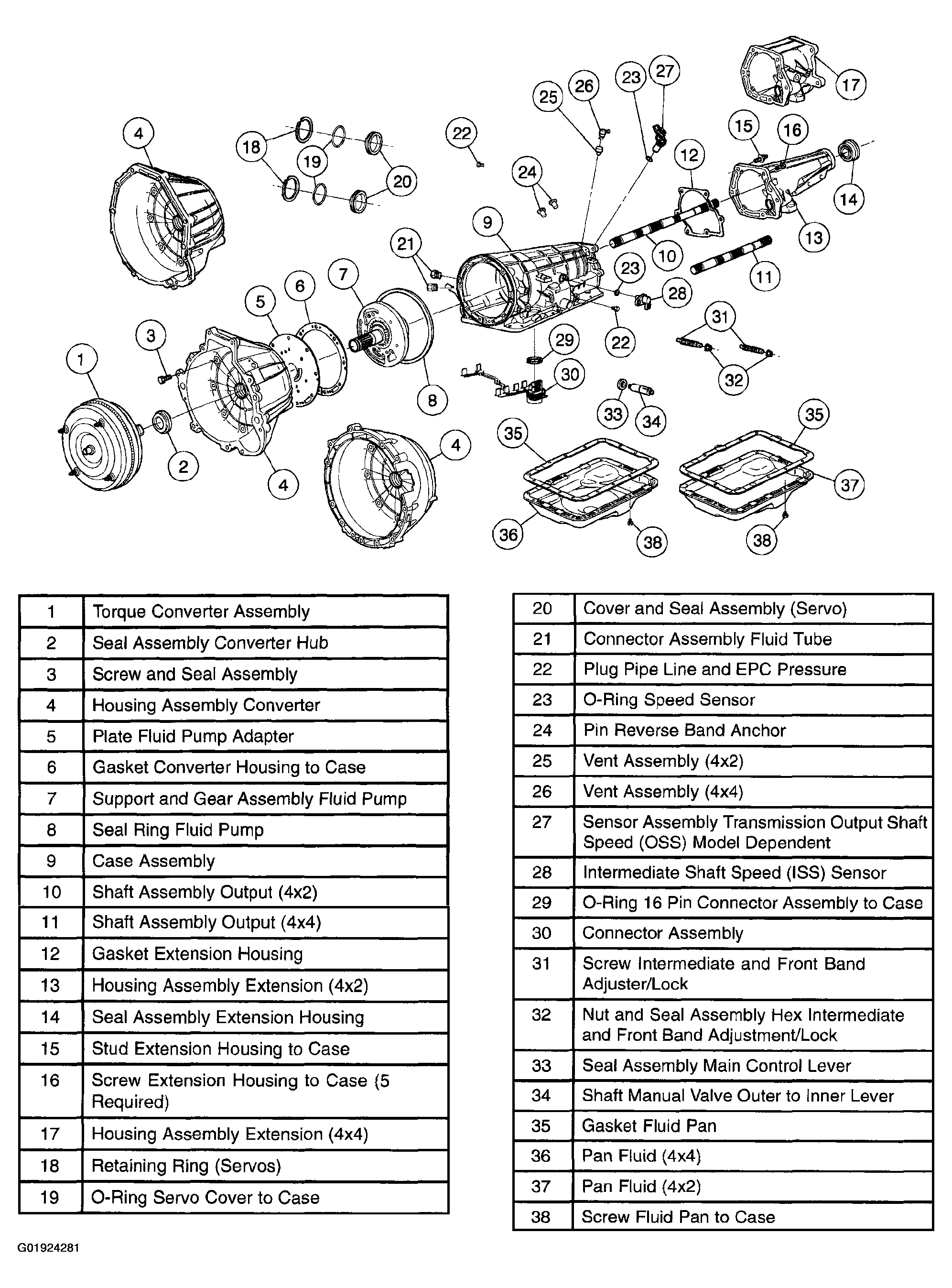

Fig 1: Exploded View Of Transmission External Sealing
Courtesy of MAZDA MOTORS CORP.
