Home >> Mazda >> 2003 >> B4000 Base, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Technical Data (Suspension) >> Specifications - Suspension >> Notes

Specifications - Suspension: Notes

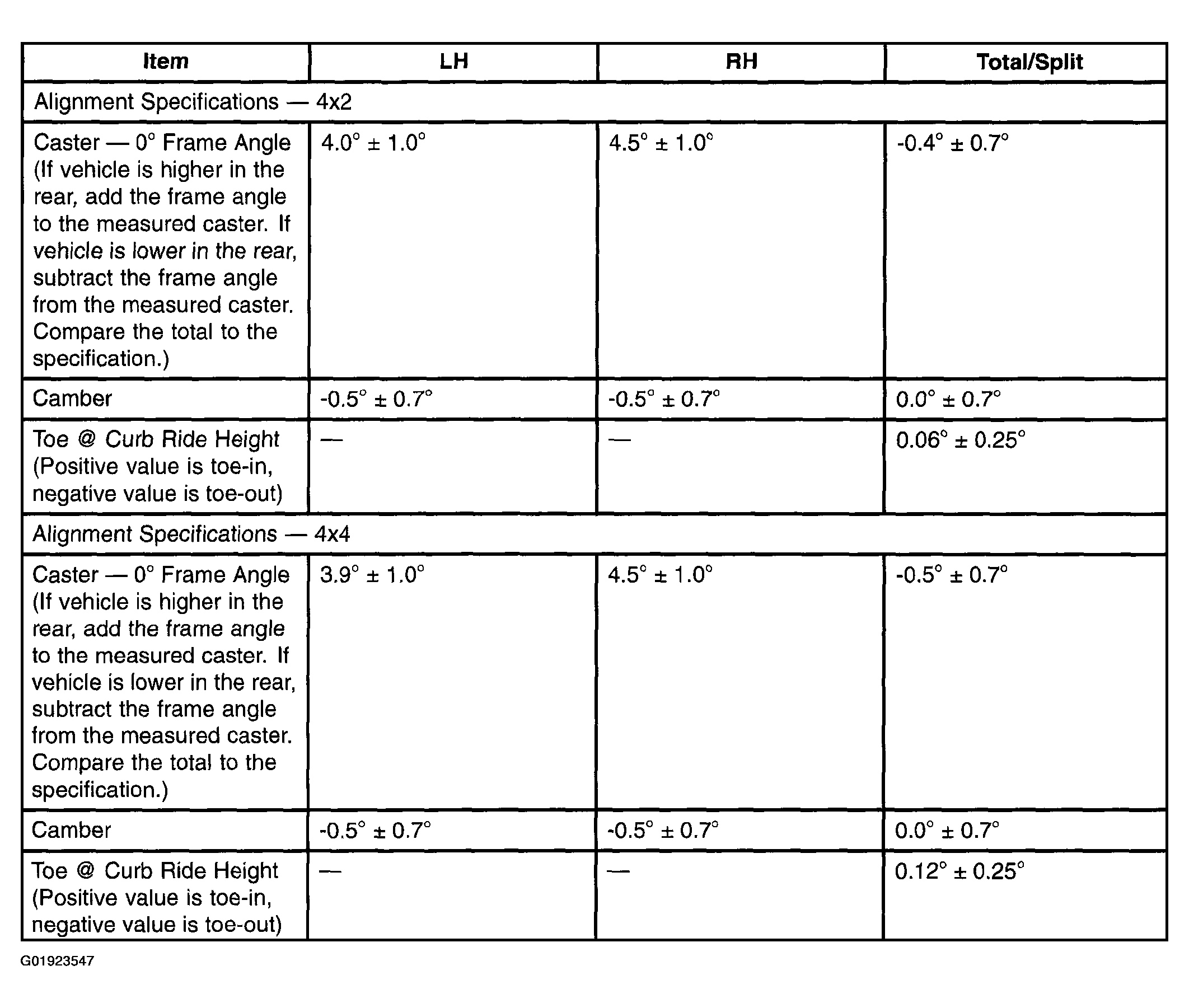

Fig 1: Suspension - Specifications

G01923547

Courtesy of MAZDA MOTORS CORP.
