Seat Belt Description

Seat Belt System/Regular Cab

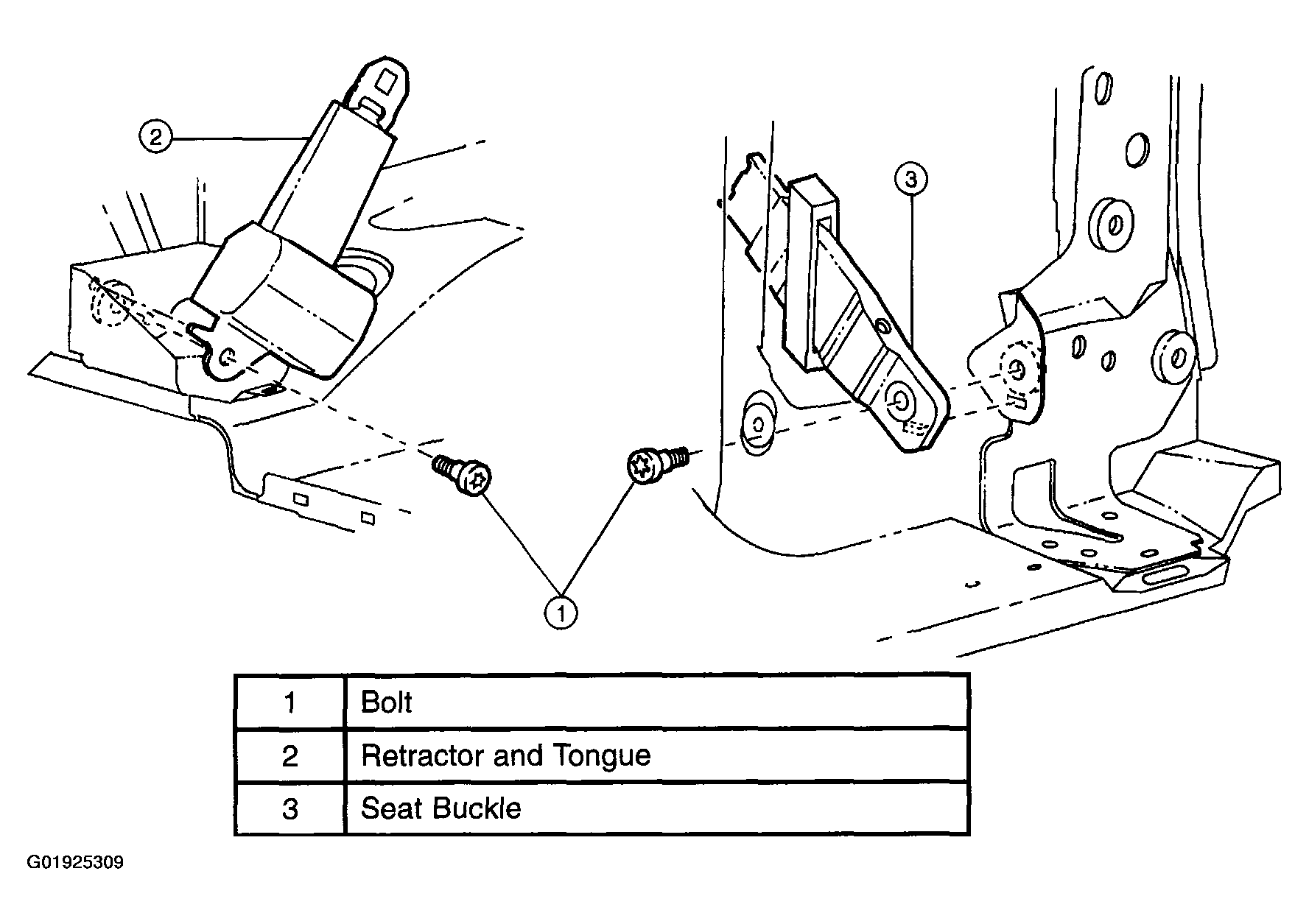

Fig 1: Identifying Seat Belt Regular Cab

Courtesy of MAZDA MOTORS CORP.

Seat Belt System - Cab Plus (2-Door)

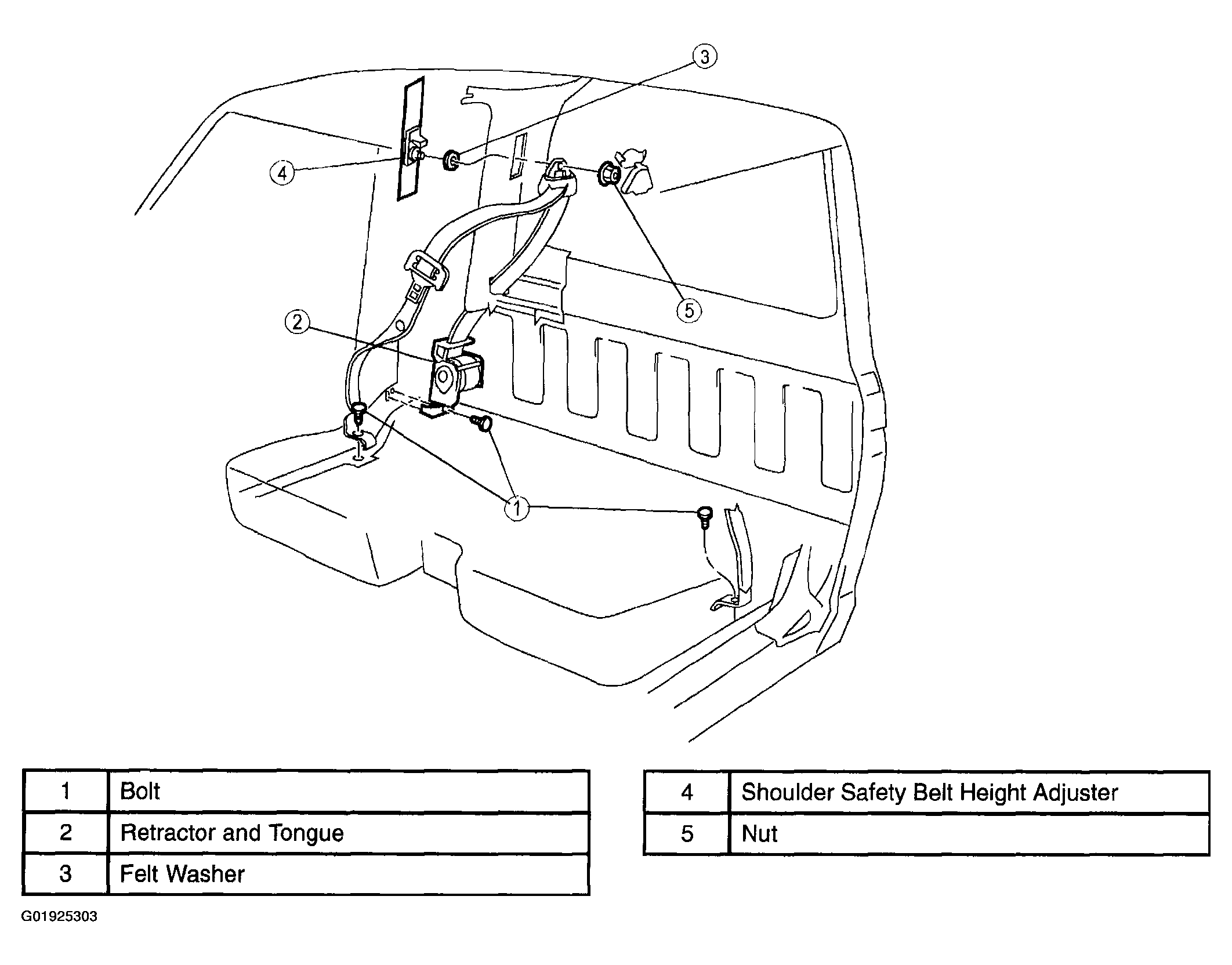

Fig 2: Identifying Seat Belt System Cab Plus (2-Door)

Courtesy of MAZDA MOTORS CORP.

Seat Belt System - Cab Plus (4-Door)

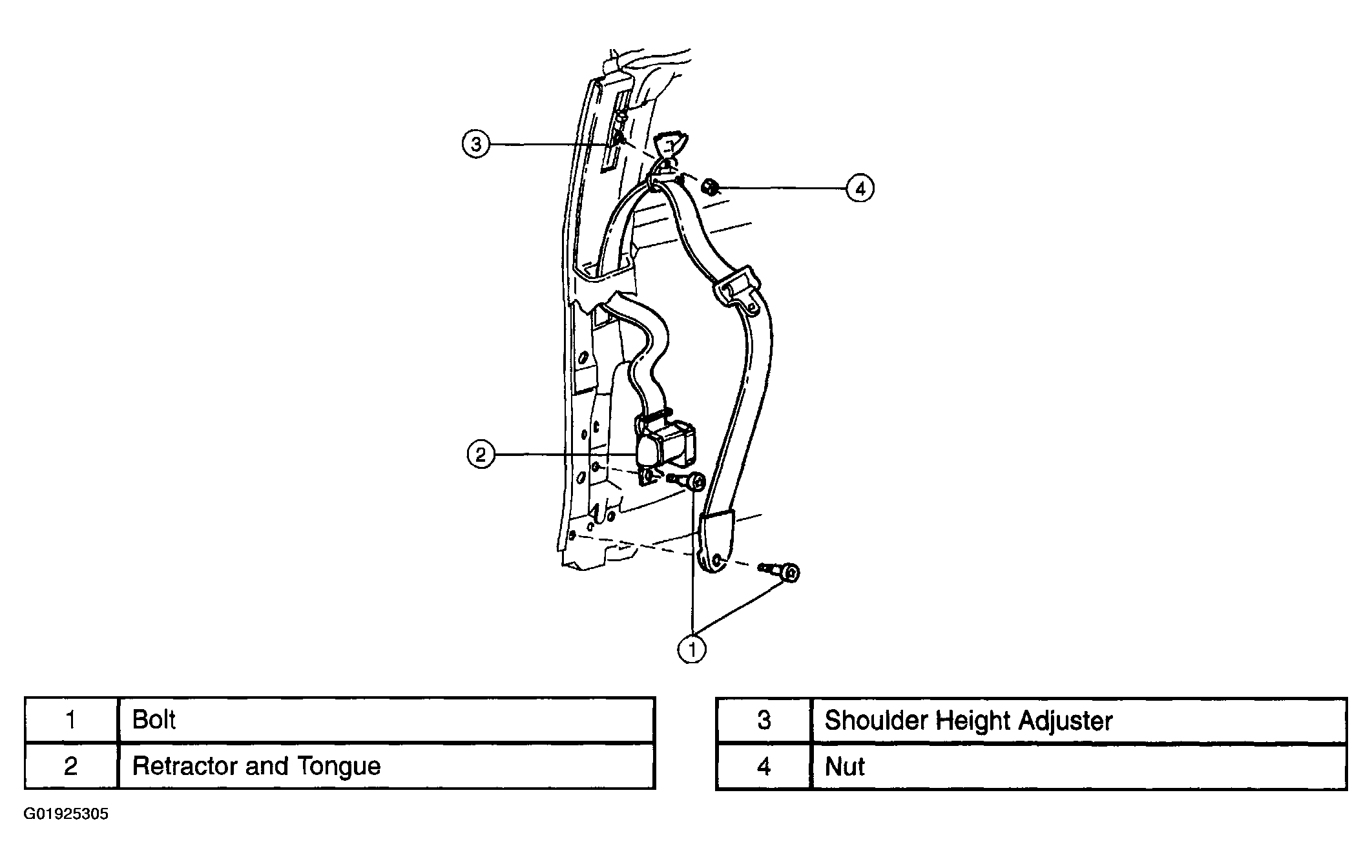

Fig 3: Identifying Seat Belt System Cab Plus (4-Door)

Courtesy of MAZDA MOTORS CORP.

Seat Belt System - Front Seats

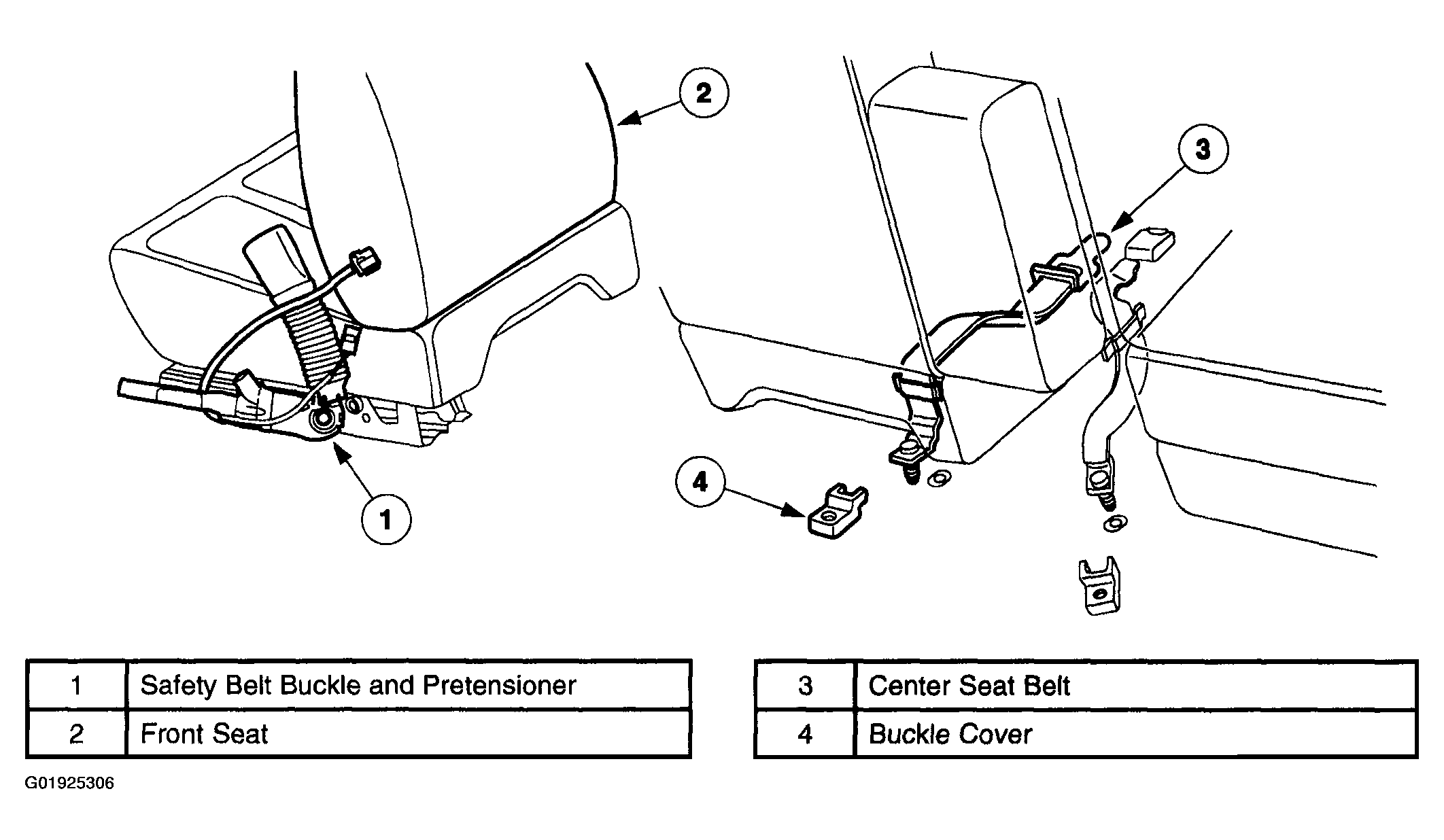

Fig 4: Identifying Front Seats Seat Belt System

Courtesy of MAZDA MOTORS CORP.

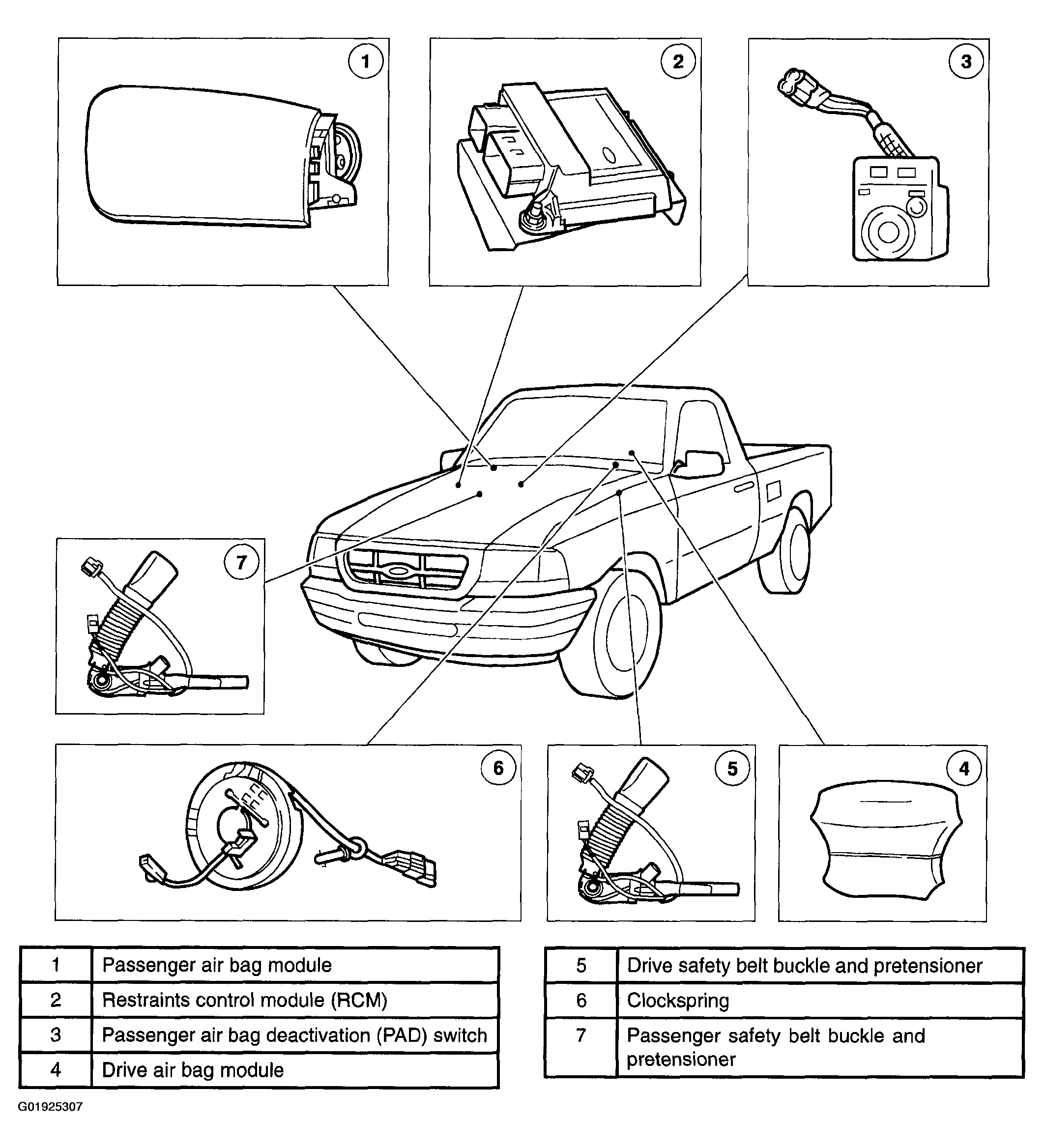

Fig 5: Identifying Seat Belt System Components

Courtesy of MAZDA MOTORS CORP.

Seat Belt System - Rear Seats (2-Door)

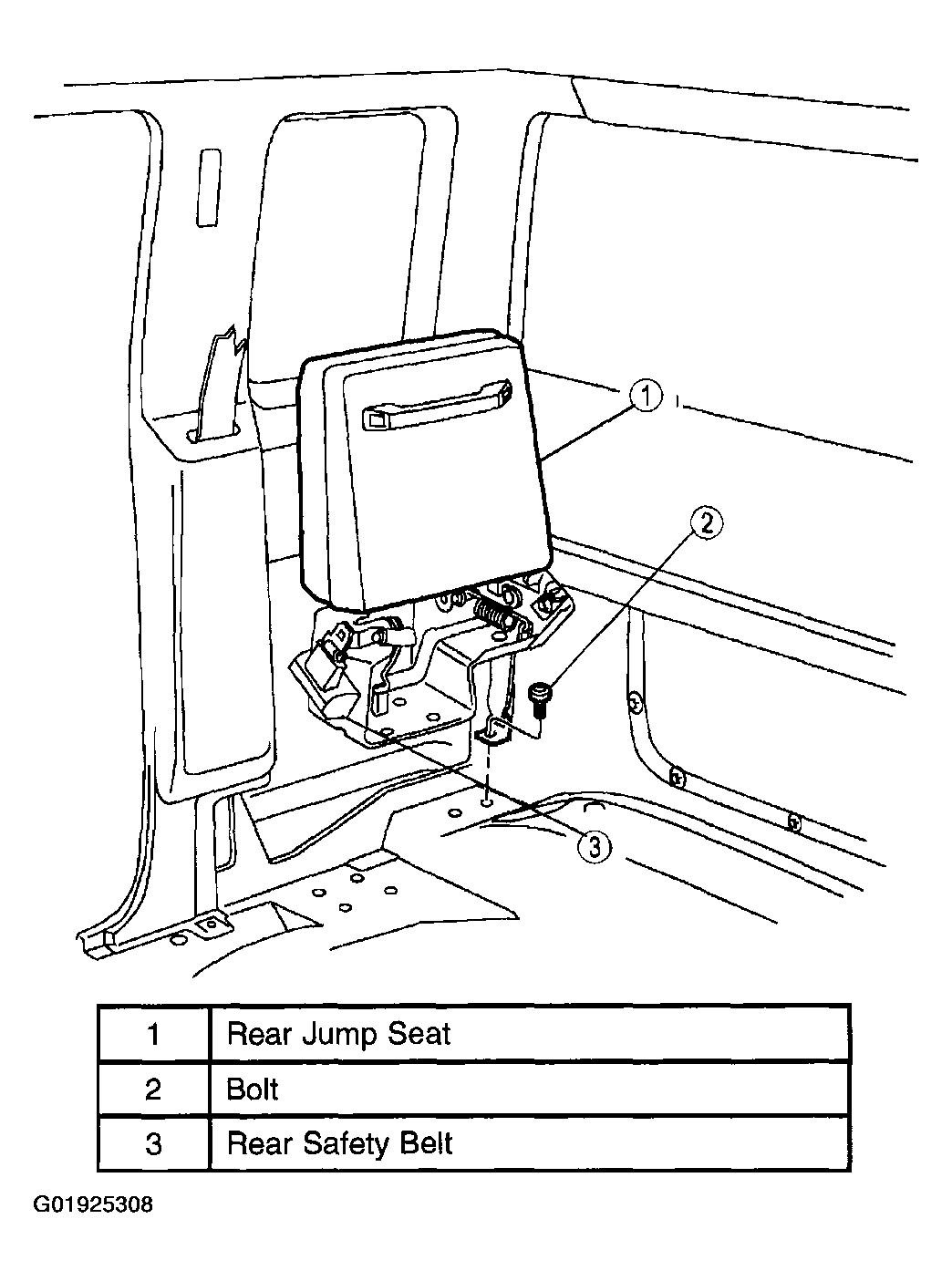

Fig 6: Identifying Rear Seat (2-Door)

Courtesy of MAZDA MOTORS CORP.

Seat Belt System - Rear Seats (4-Door)

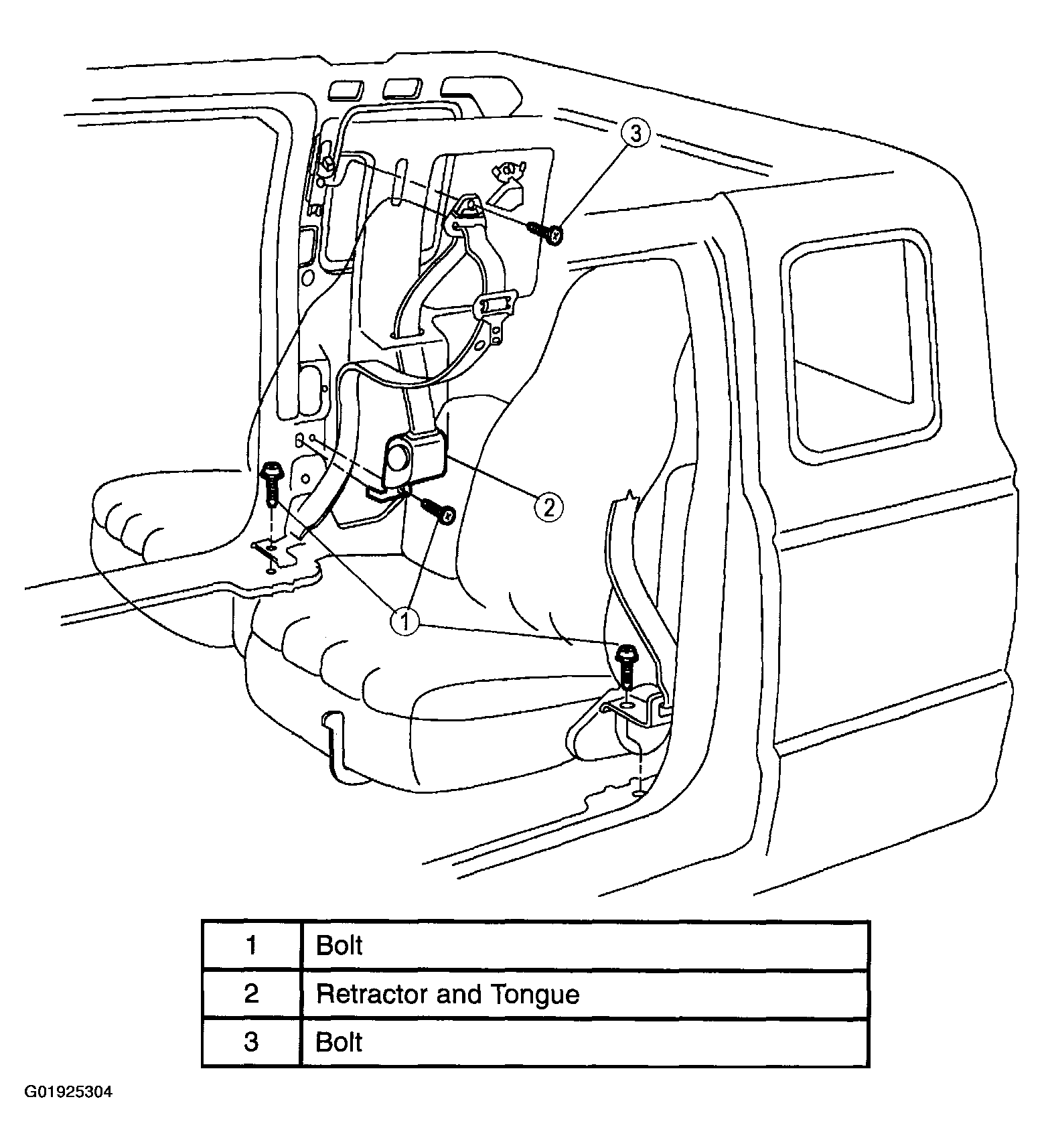

Fig 7: Identifying Rear Seat (4-Door)

Courtesy of MAZDA MOTORS CORP.

The lower anchors and tethers for children (LATCH) system is a standardized and uniform attachment system for installing child safety seats in passenger vehicles. LATCH-equipped child safety seats have two lower attachments that connect to the vehicle portion of the LATCH system.

The vehicle portion of the system consists of two attachment points (6mm wires) welded to the front outboard passenger seat cushion frame. The attachment points protrude from the bite line between the seat cushion and seat backrest.

If a child safety seat was in use during a collision, inspect the vehicle portion of the system for damage. If any of the attachment points (6mm wires) are damaged, install a new seat cushion frame.
