Home >> Mazda >> 2003 >> B4000 Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Generic Electronic Module (GEM) Connector End View (C2100a)

Generic Electronic Module (GEM) Connector End View (C2100a)

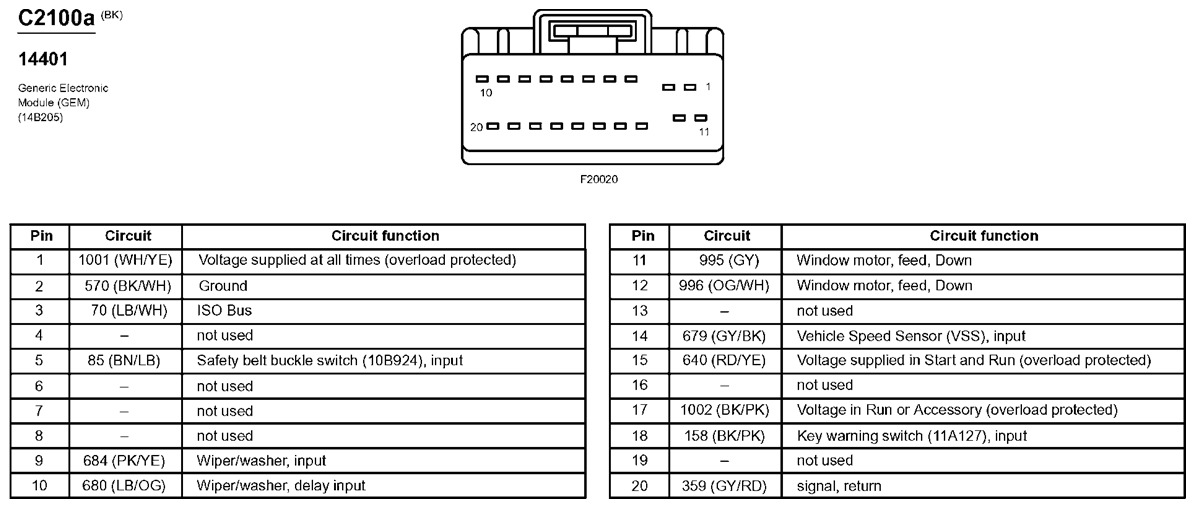

Fig 1: Generic Electronic Module (GEM) Connector End View (C2100a)

G03777133

Courtesy of FORD MOTOR CO.
