Central Security Module Connector End View (C274b)

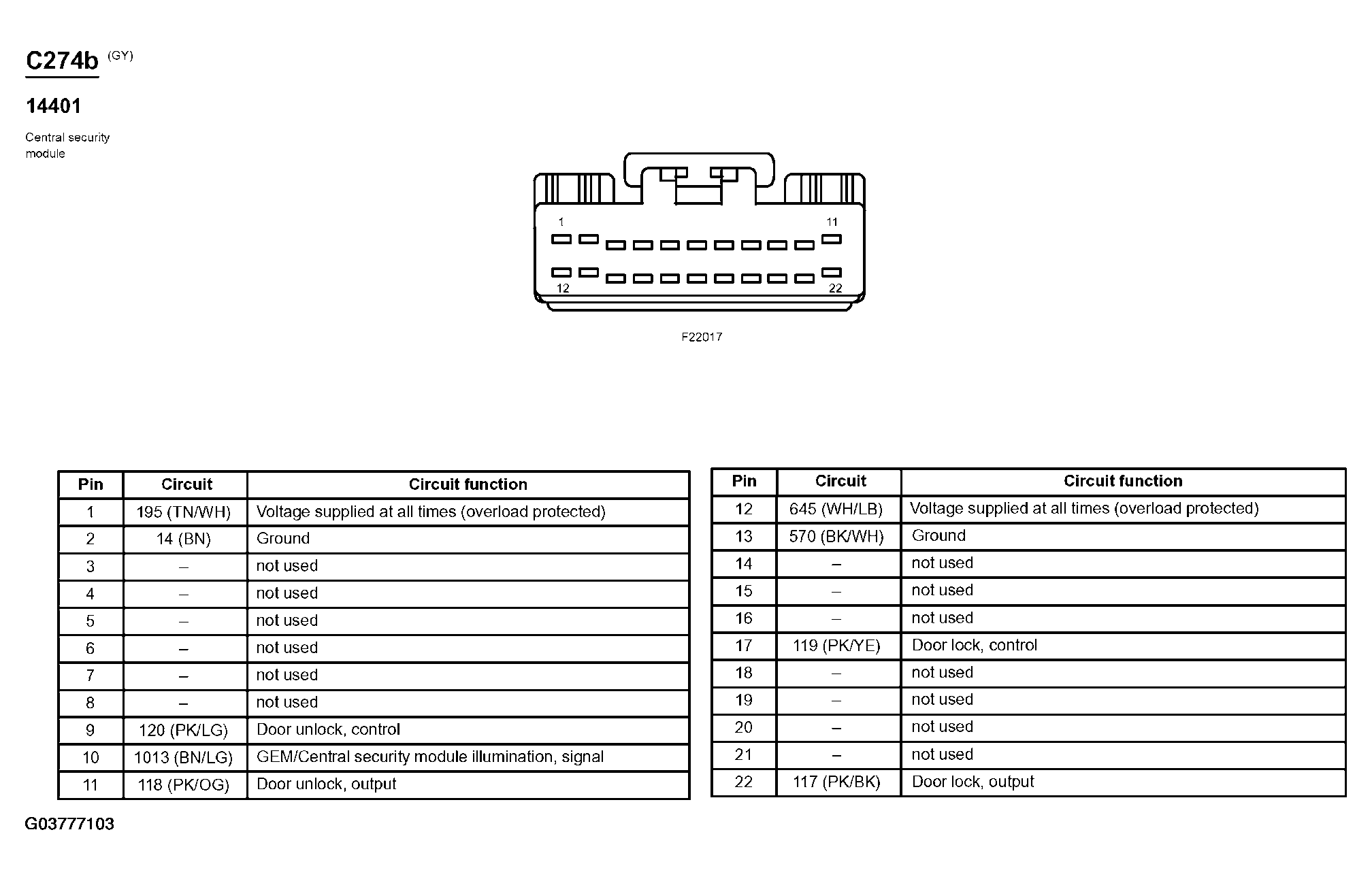

Fig 1: Central Security Module Connector End View (C274b)

G03777103

Courtesy of FORD MOTOR CO.
