Central Security Module Connector End View (C274a)

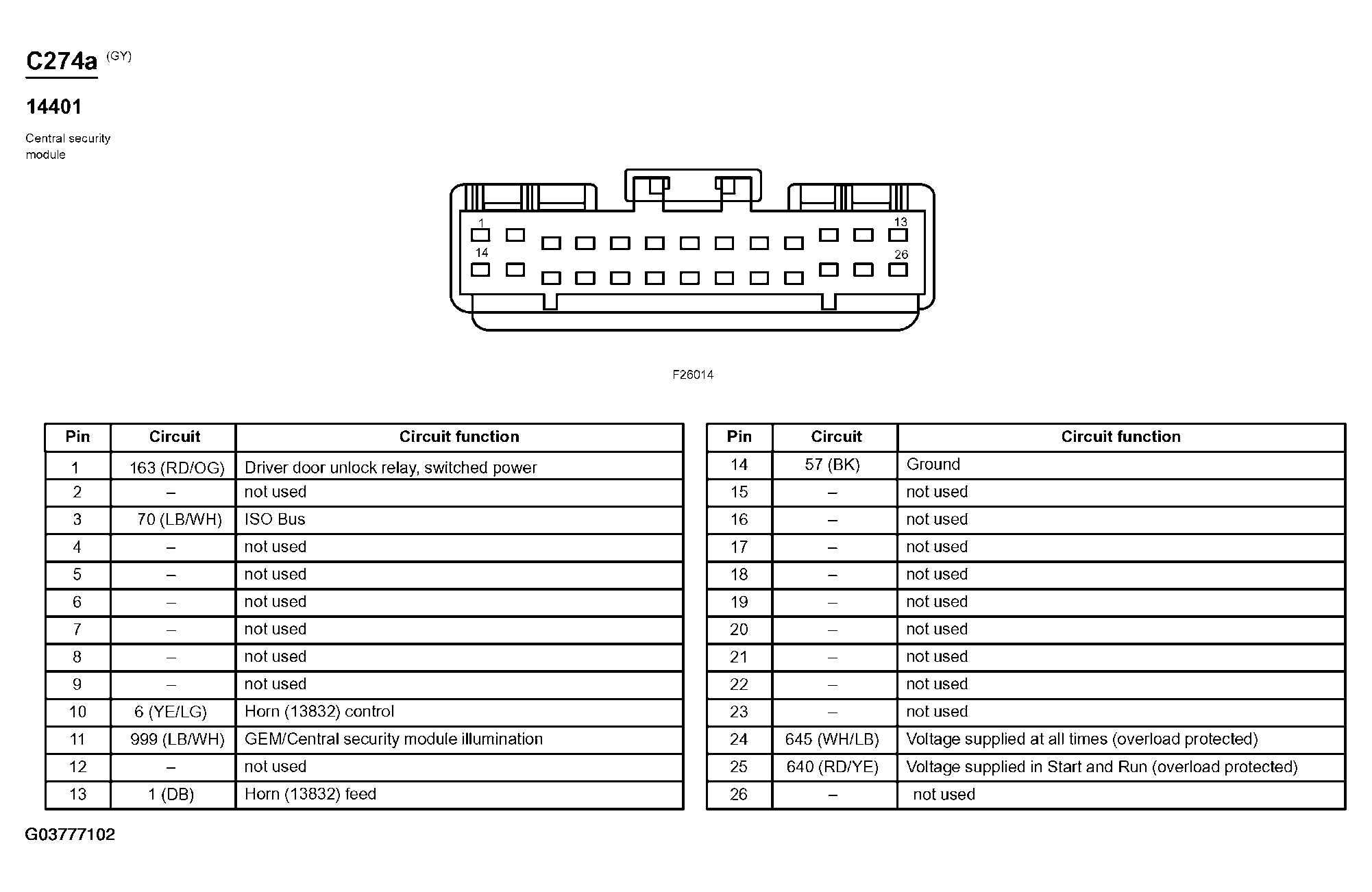

Fig 1: Central Security Module Connector End View (C274a)

G03777102

Courtesy of FORD MOTOR CO.
