Installation Note:

WARNING:
  • To reduce the risk of serious personal injury, read and follow warnings, cautions, and notes at the beginning of the removal procedure.

All Vehicles

  1. Install the inboard recliner and the nut.

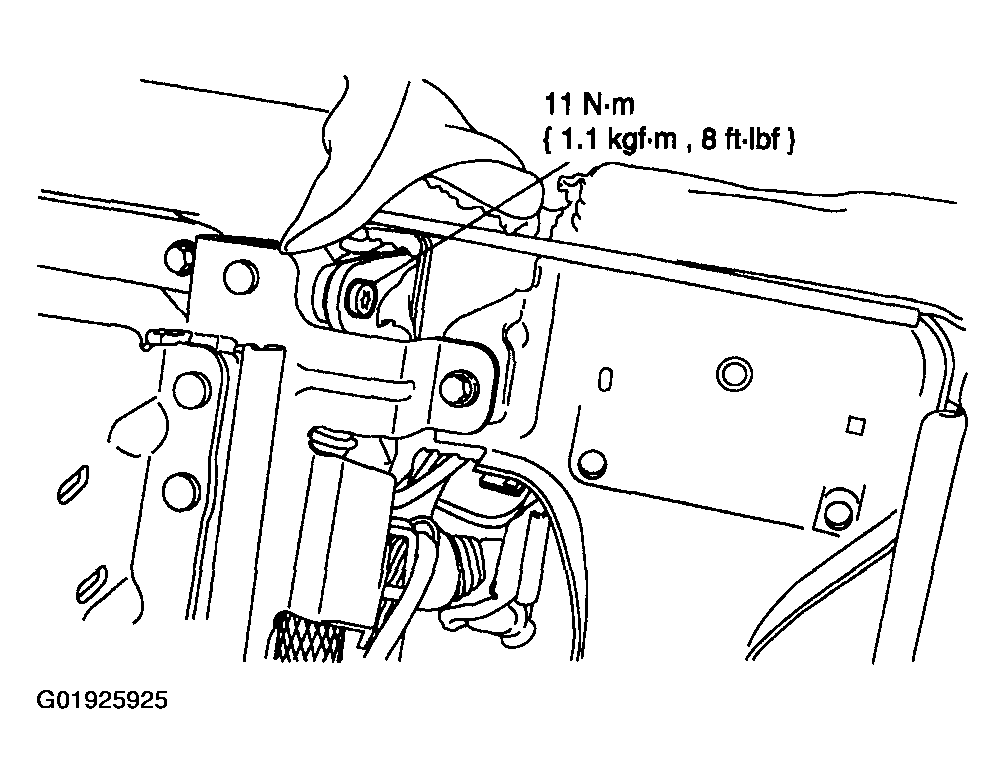

    Fig 1: Installing Outboard Recliner And Nut
    G01925925Courtesy of MAZDA MOTORS CORP.
  2. Install the outboard recliner and the nut.
  3. On supercab vehicles, install the two plastic locks.
    Fig 2: Installing Plastic Locks
    G01925926Courtesy of MAZDA MOTORS CORP.
  4. Install the linkage. Latch the plastic locks.

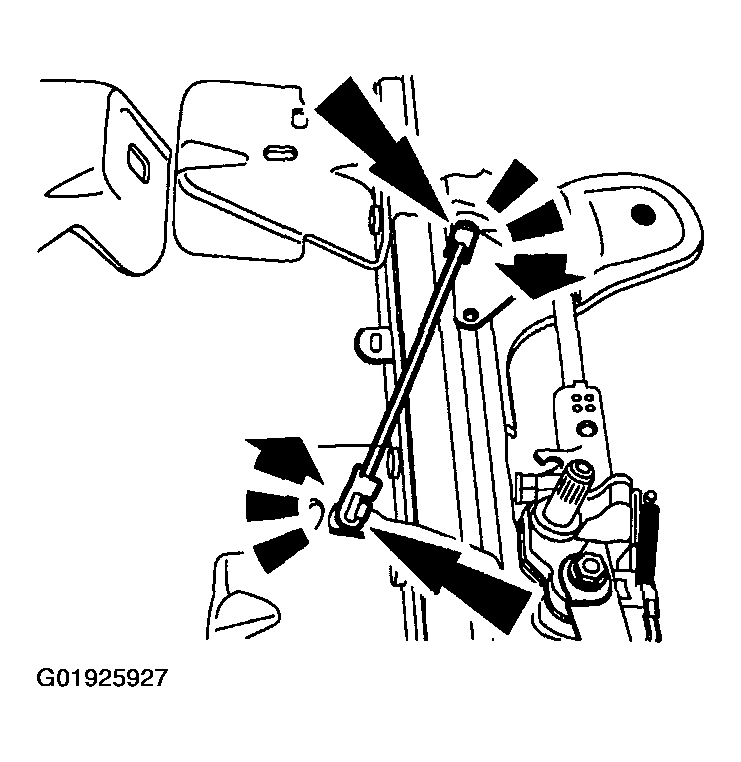

    Fig 3: Installing Linkage
    G01925927Courtesy of MAZDA MOTORS CORP.
  5. On all vehicles, install the LH and RH seat tracks as an assembly.

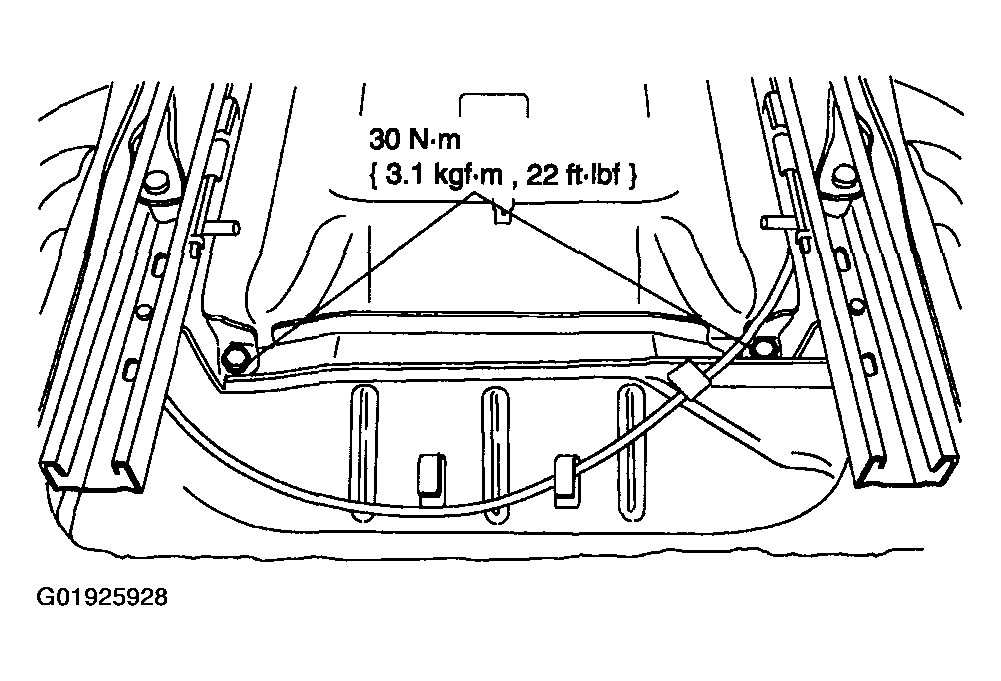

    Fig 4: Installing LH And RH Seat Tracks
    G01925928Courtesy of MAZDA MOTORS CORP.
  6. Install the bolts.

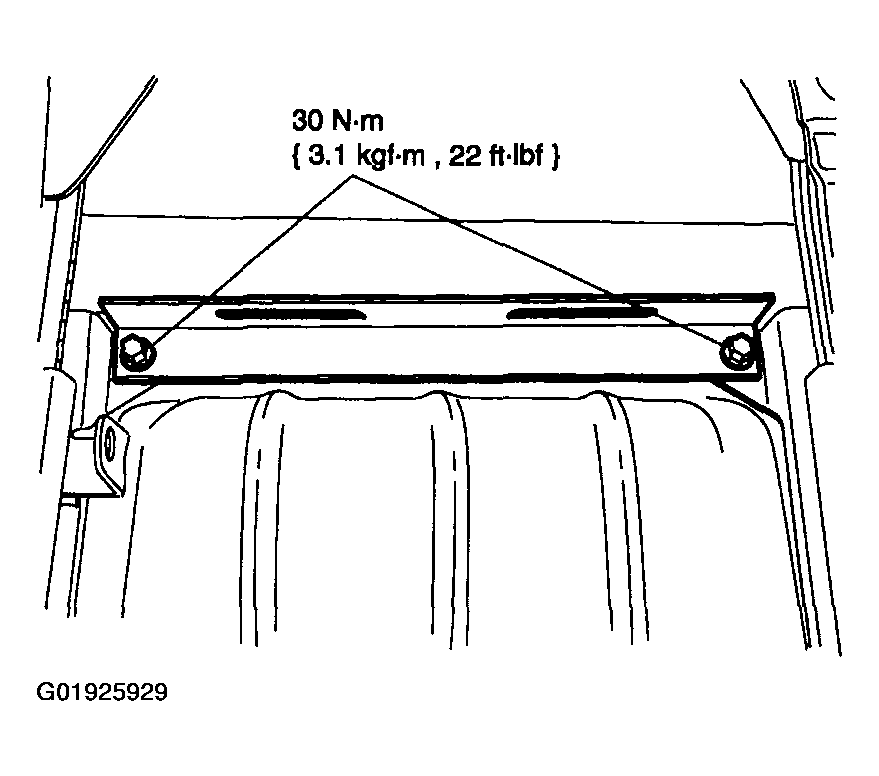

    Fig 5: Installing Bolts
    G01925929Courtesy of MAZDA MOTORS CORP.
  7. Install the bracket and the bolts.

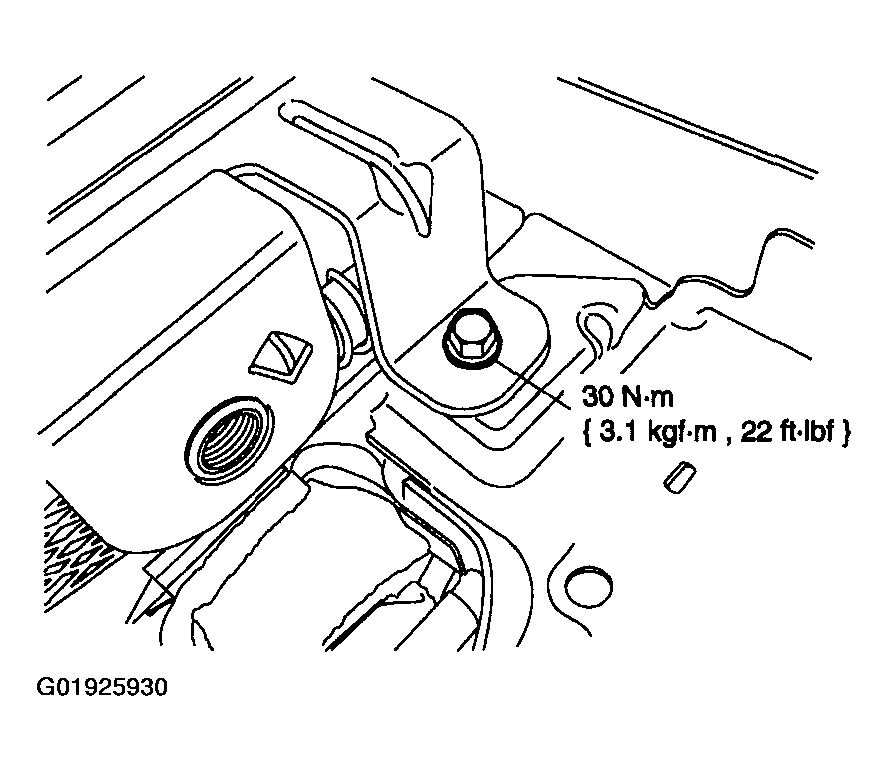

    Fig 6: Installing Bracket And Bolts
    G01925930Courtesy of MAZDA MOTORS CORP.
  8. Install the bolt.

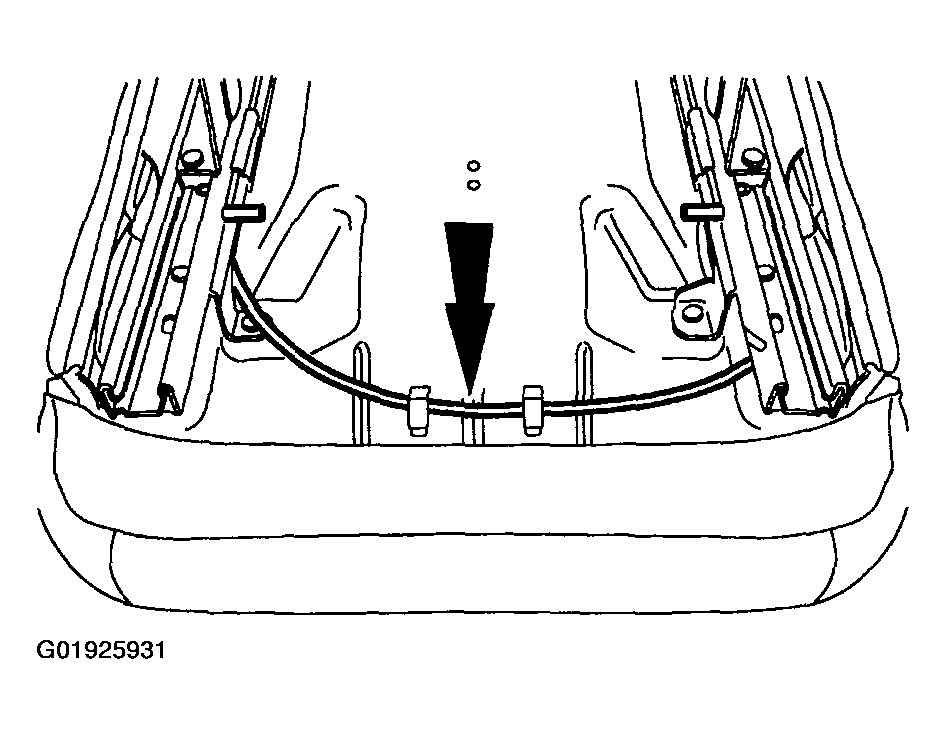

    Fig 7: Installing Seat Backrest Recliner Link Cable
    G01925931Courtesy of MAZDA MOTORS CORP.
  9. Install the seat backrest recliner link cable.

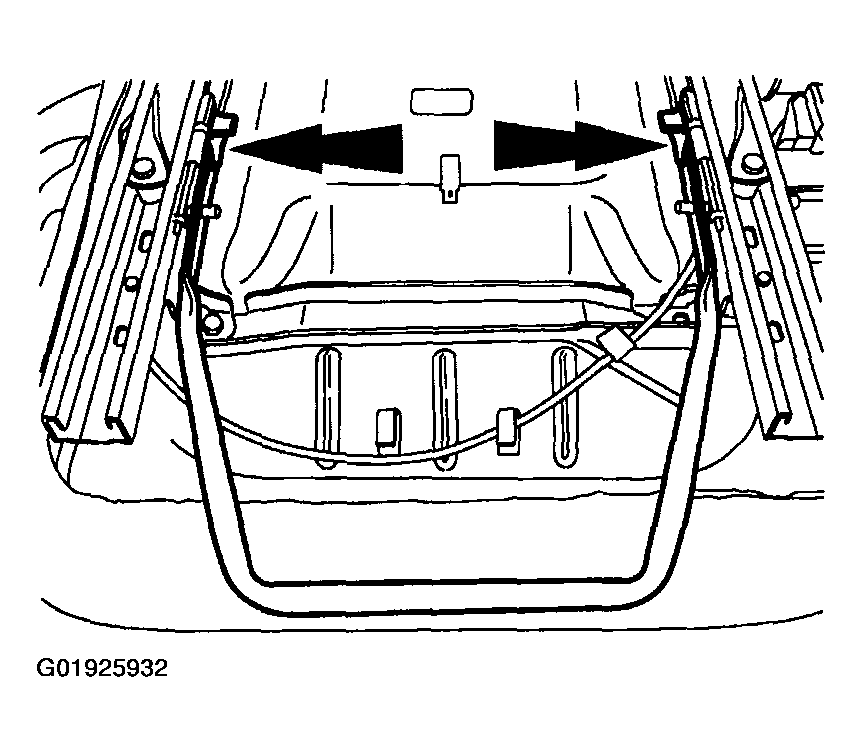

    Fig 8: Installing Seat Track Adjustment Lever
    G01925932Courtesy of MAZDA MOTORS CORP.
  10. Install the seat track adjustment lever.
    1. Install one side of the seat track adjustment lever at a time.

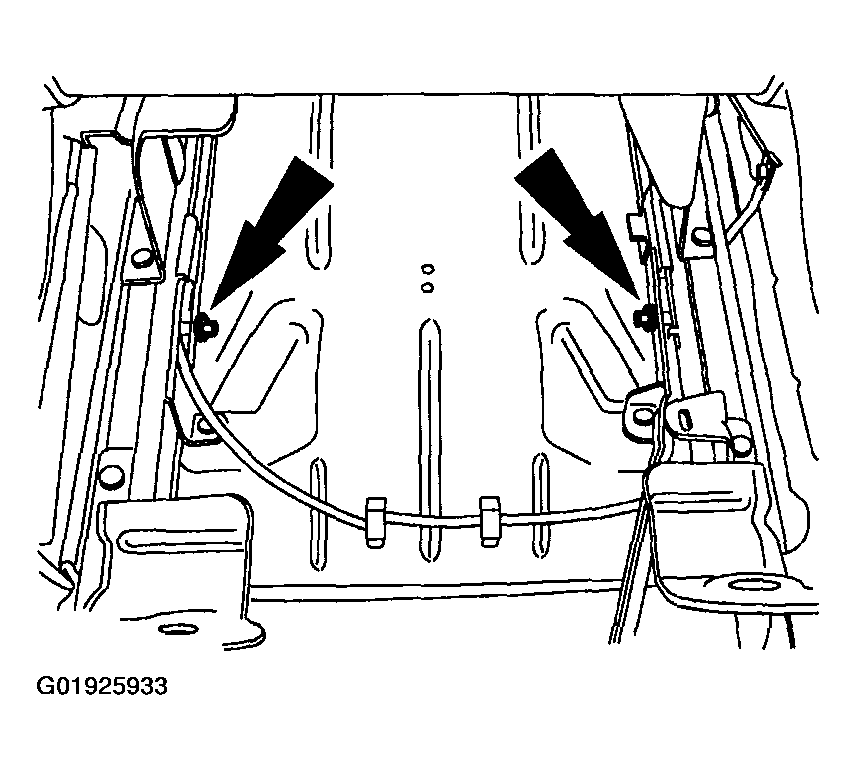

    Fig 9: Installing Push Nuts
    G01925933Courtesy of MAZDA MOTORS CORP.
  11. Install the push nuts.

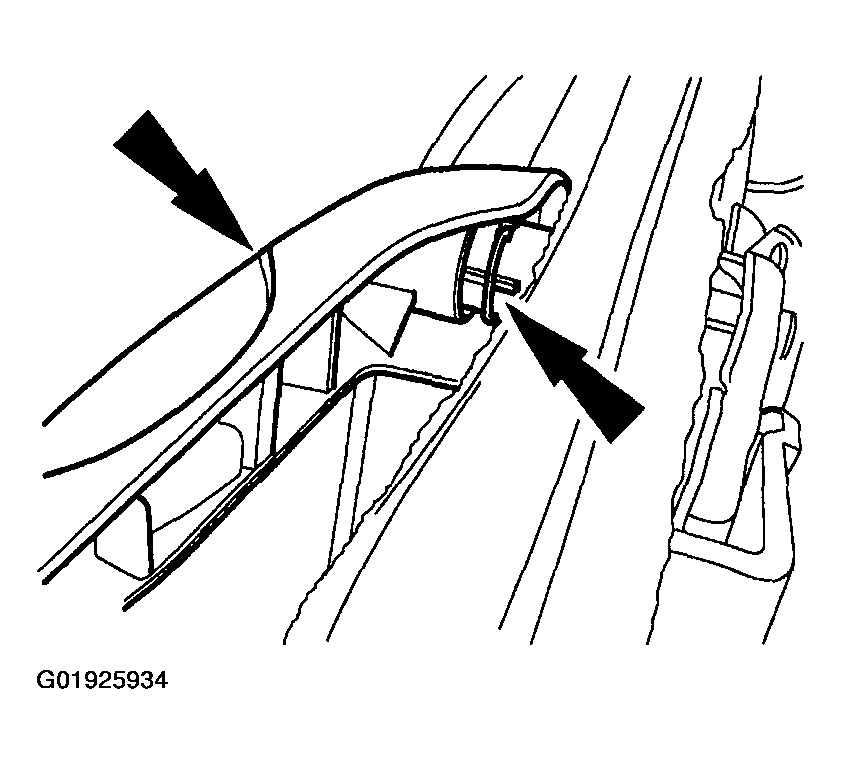

    Fig 10: Installing Spring Clip On Recliner Handle
    G01925934Courtesy of MAZDA MOTORS CORP.
  12. Install the spring clip on the recliner handle. Install the recliner handle.

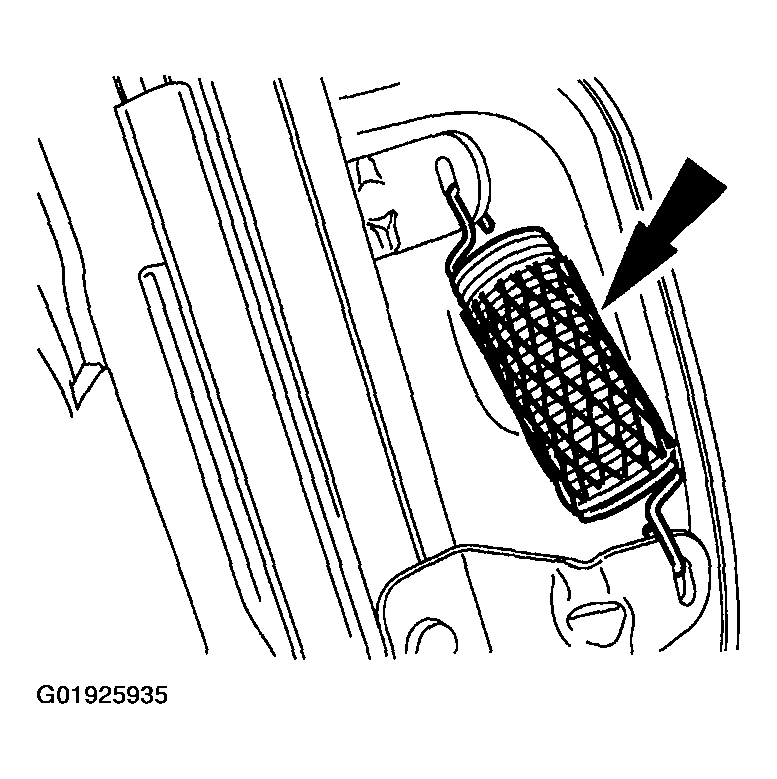

    Fig 11: Installing Spring
    G01925935Courtesy of MAZDA MOTORS CORP.
  13. Install the spring.

    Vehicles without safety belt buckle pretensioners

  14. Restore the vehicle to operating condition.
    1. Install the front seat backrest. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
    2. Install the seat armrest. For additional information, see SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
      WARNING:
      • To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
  15. Install the 60 percent bench seat. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .

    Vehicles With Safety Belt Buckle Pretensioners

  16. Restore the vehicle to operating condition.
    1. Install the front seat backrest. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
    2. Install the seat armrest. For additional information, See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
      WARNING:
      • To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the safety belt buckle and pretensioner removal and installation procedure.
    3. Install the safety belt buckle and pretensioner. See SEAT BELT BUCKLE AND PRETENSIONER - 60 PERCENT BENCH .
      WARNING:
      • To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.
    4. Install the 60 percent bench seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION  .
      WARNING:
      • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

      To deplete the backup power supply energy, disconnect the negative battery cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

    5. Disconnect the negative battery cable.
      WARNING:
      • To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
    6. Reactivate the supplemental restraint system (SRS). See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND ACTIVATION  .
    7. Connect the negative battery cable.
    8. With all restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). See AIR BAG SYSTEM DIAGNOSTICS .

    All Vehicles

  17. Check the active restraint system for correct operation. See AIR BAG SYSTEM DIAGNOSTICS .
