DTC B1213: Anti-Theft Number Of Programmed Enclosed Ignition Keys Below Minimum

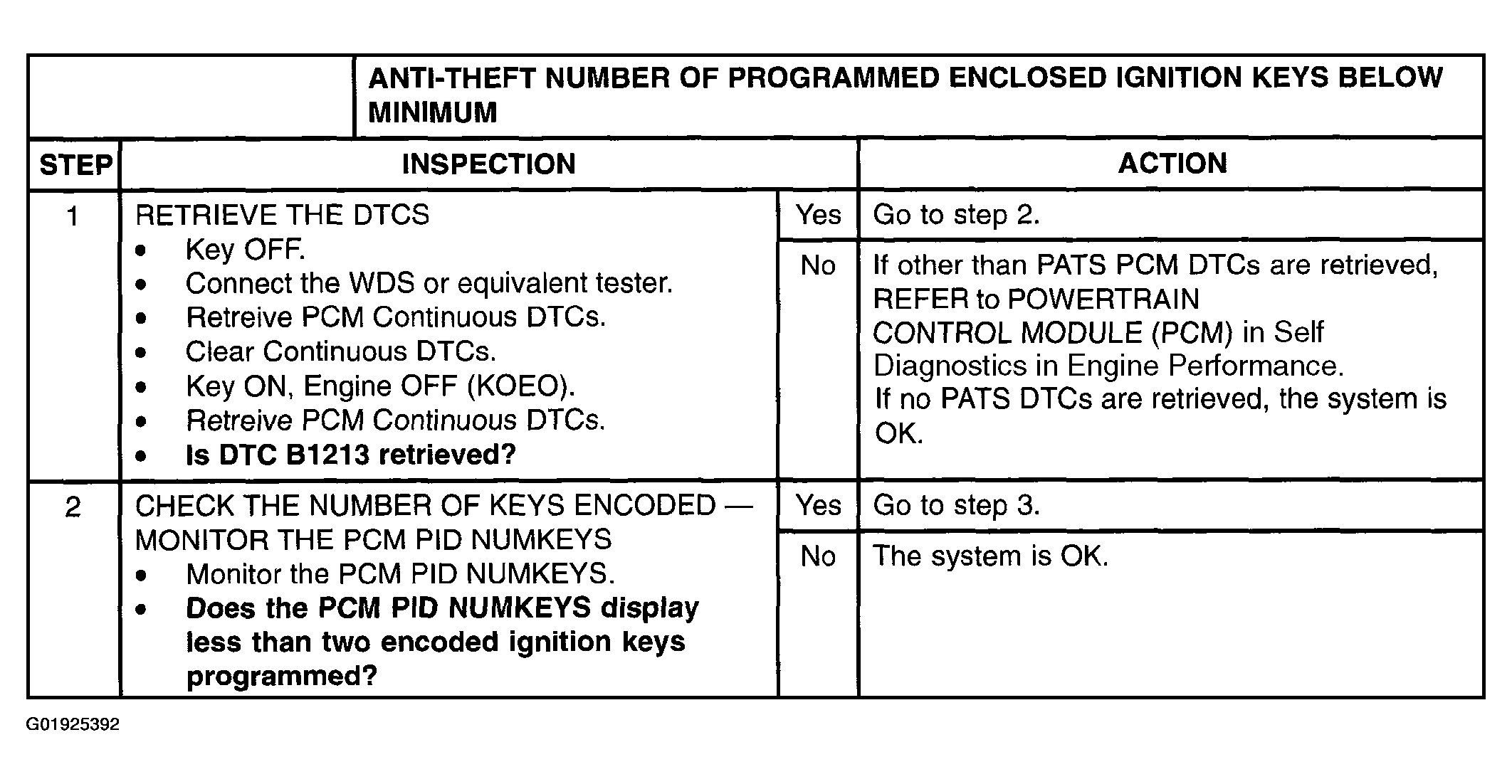

Fig 1: DTC B1213 Anti-Theft Number Of Programmed Enclosed Ignition Keys Below Minimum (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

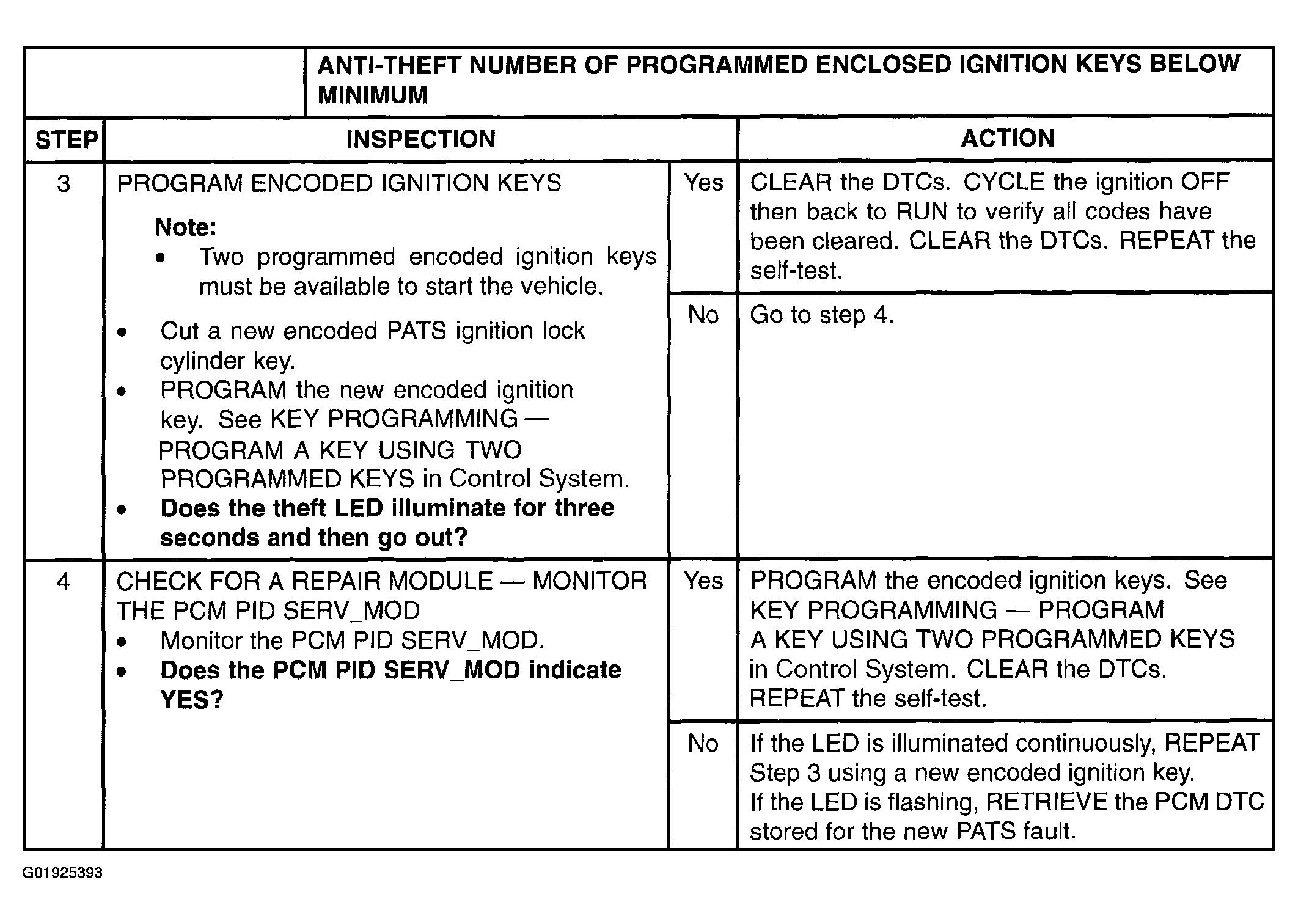

Fig 2: DTC B1213 Anti-Theft Number Of Programmed Enclosed Ignition Keys Below Minimum (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.
