Home >> Mazda >> 2003 >> B4000 Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Troubleshooting (Security System And Locks System) >> Panic Feature Is Inoperative/Does Not Operate Correctly

Panic Feature Is Inoperative/Does Not Operate Correctly

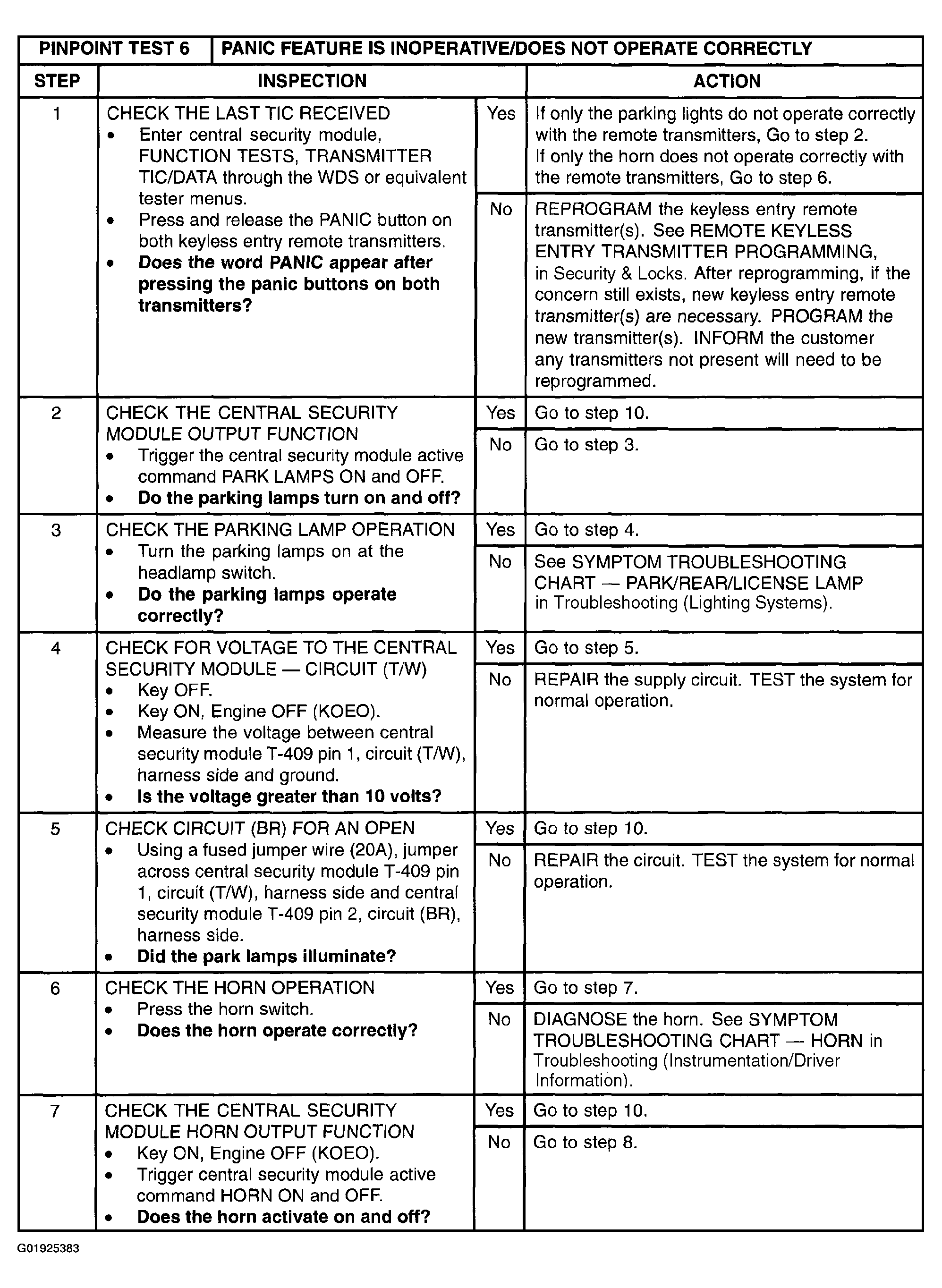

Fig 1: Panic Feature Is Inoperative/Does (Steps 1-7)
G01925383Courtesy of MAZDA MOTORS CORP.

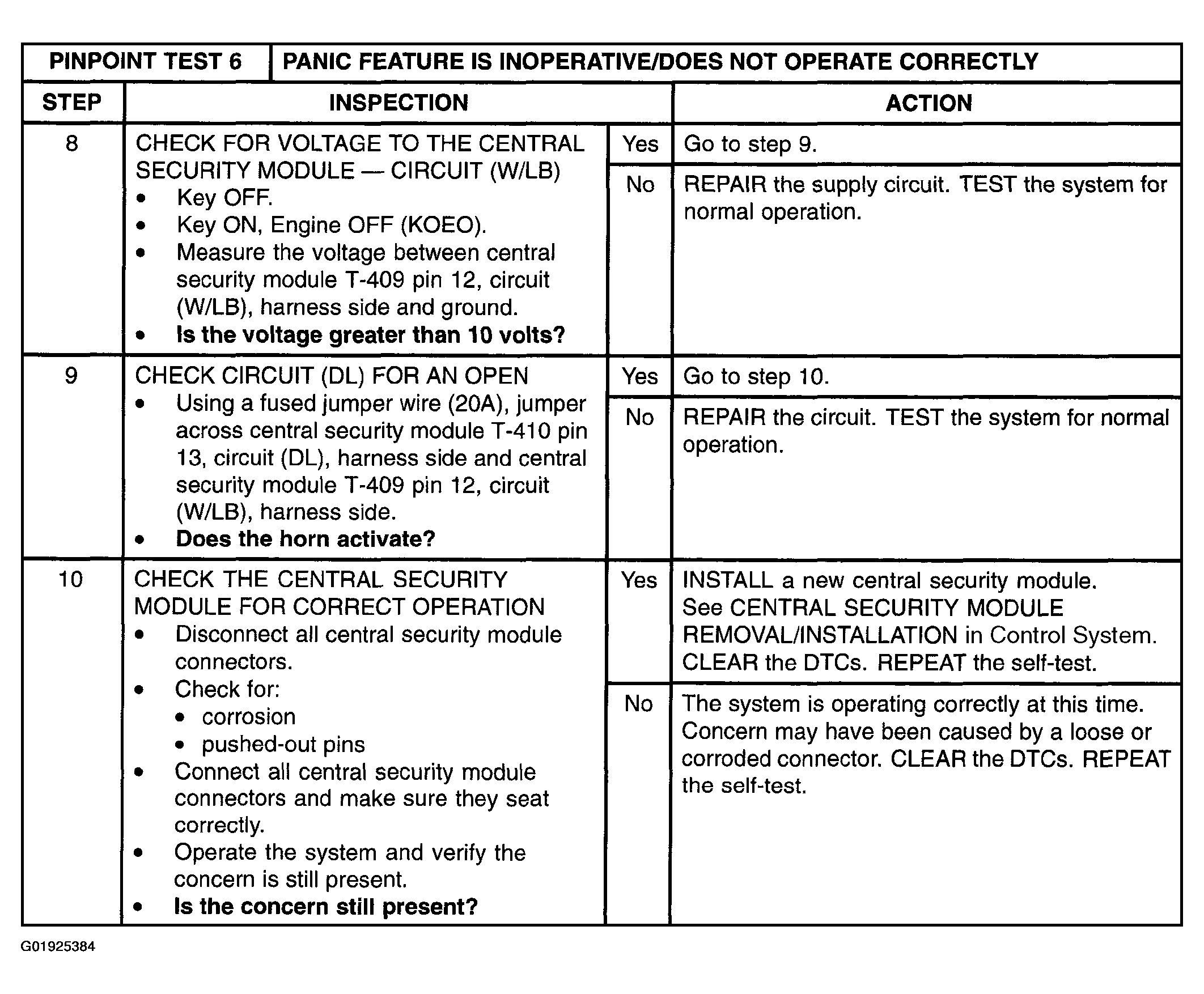

Fig 2: Panic Feature Is Inoperative/Does (Steps 8-10)
G01925384Courtesy of MAZDA MOTORS CORP.
