Removal Note

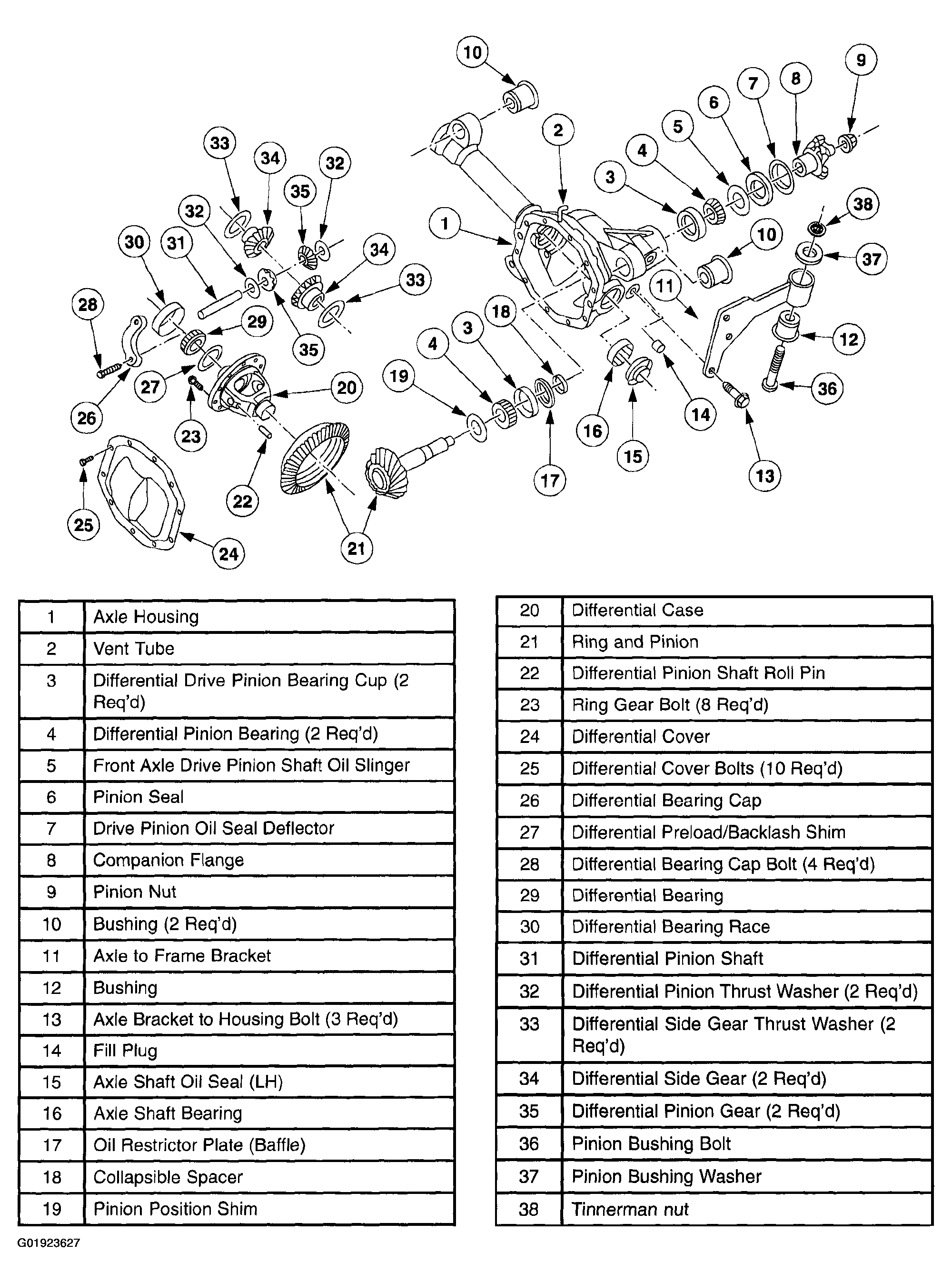

Fig 1: Exploded View Of Axle Assembly Front

Courtesy of MAZDA MOTORS CORP.

Remove the front drive axle shaft; see DRIVE SHAFT, FRONT AXLE REMOVAL/INSTALLATION .
Index the front propeller shaft to the companion flange.

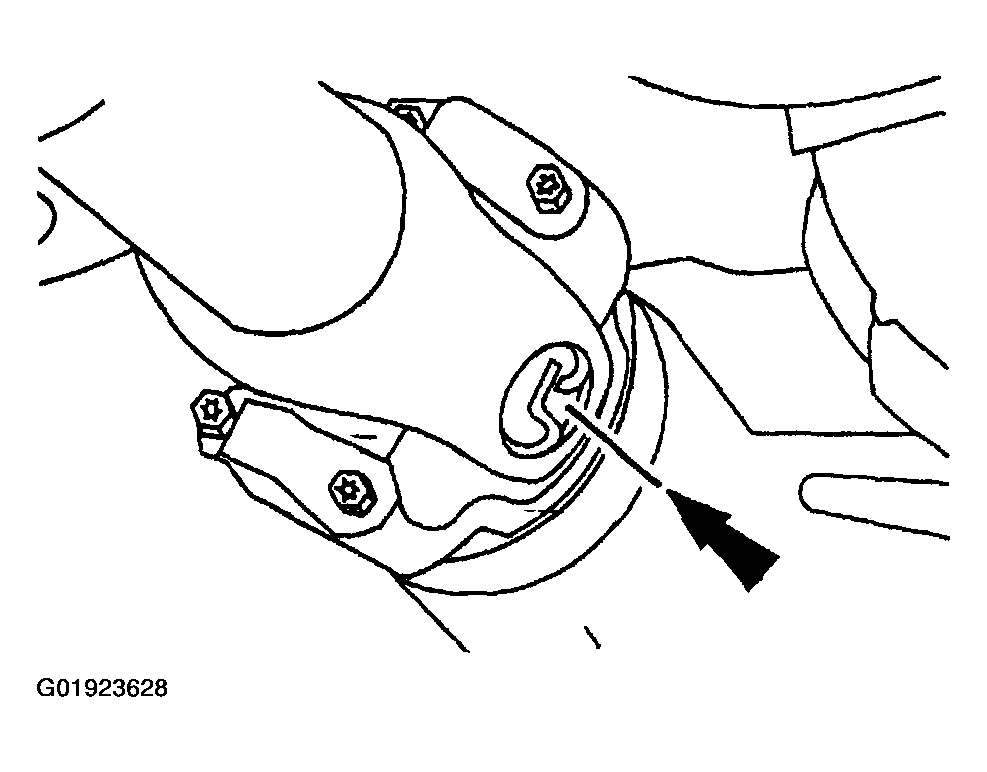

Fig 2: Locating Mark On Front Propeller Shaft To Companion Flange
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not allow the propeller shaft to hang unsupported.
Disconnect the front driveshaft from the companion flange.
1. Remove the four bolts and remove the universal joint spider retainers.
2. Disconnect the driveshaft.
3. Position the driveshaft aside.
Disconnect the axle vent tube.
Support the axle with a suitable jack.
Remove the left front axle to frame bolt and nut.
60-80 N.m {6.1-8.2 kgf.m, 45-59 ft.lbf}

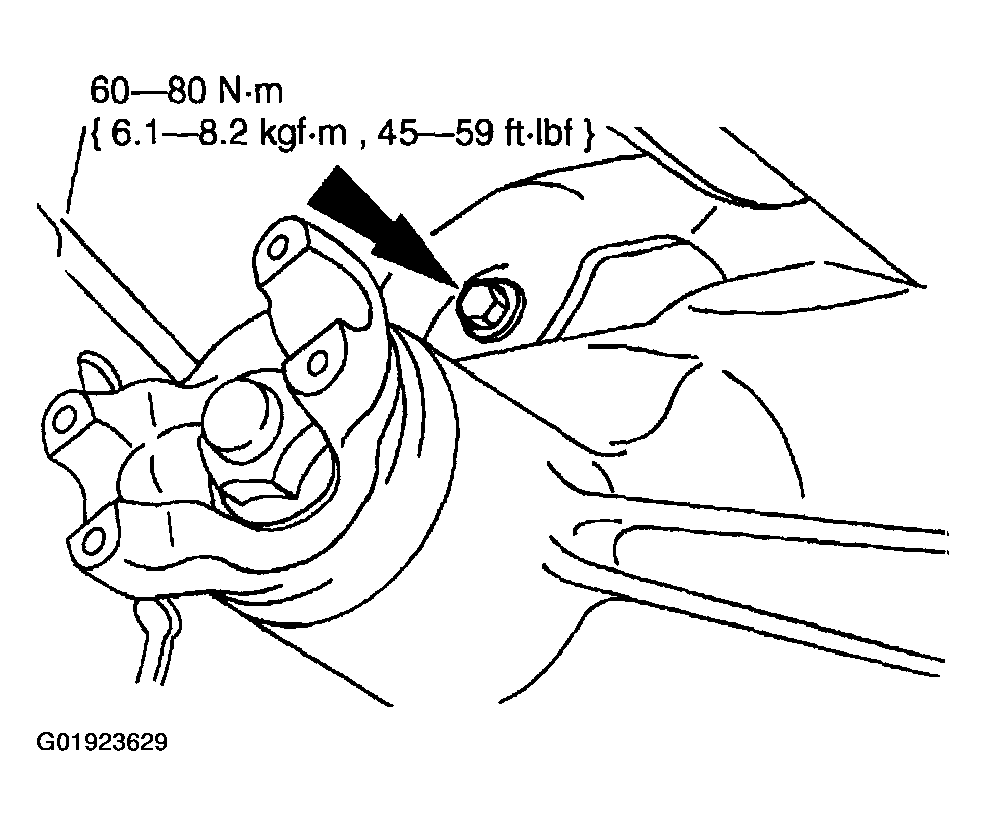

Fig 3: Locating Left Front Axle To Frame Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the other two axle to frame bolts and nuts.
60-80 N.m {6.1-8.2 kgf.m, 45-59 ft.lbf}

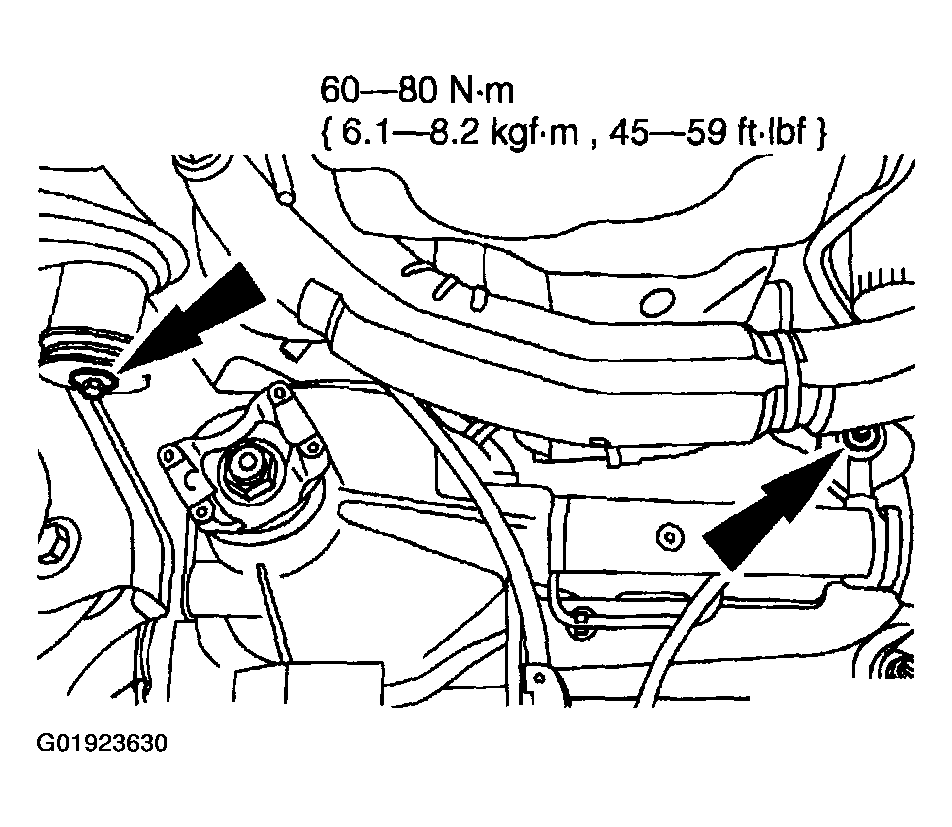

Fig 4: Locating Axle To Frame Bolts And Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the axle.
