Body & Frame
>>
Ignition Switch/Steering Lock
>>
Troubleshooting (Power Systems)
>>
No Power In Run
>>
Component Testing Procedure
Component Testing Procedure

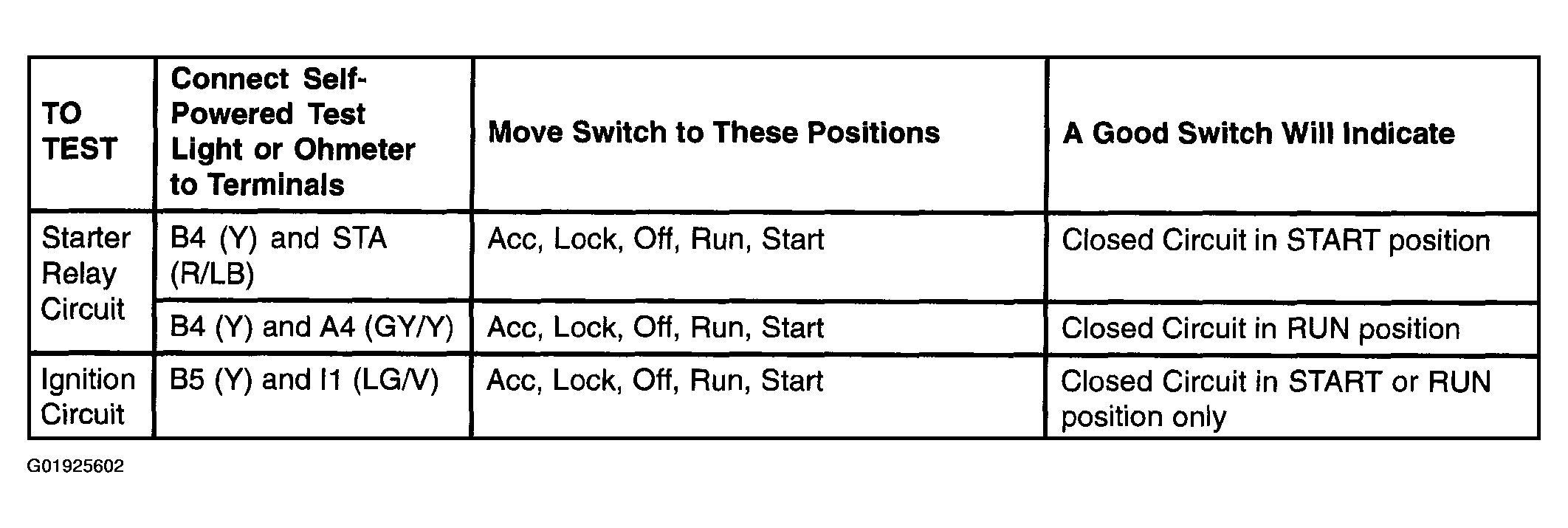

Fig 1: Component Testing Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

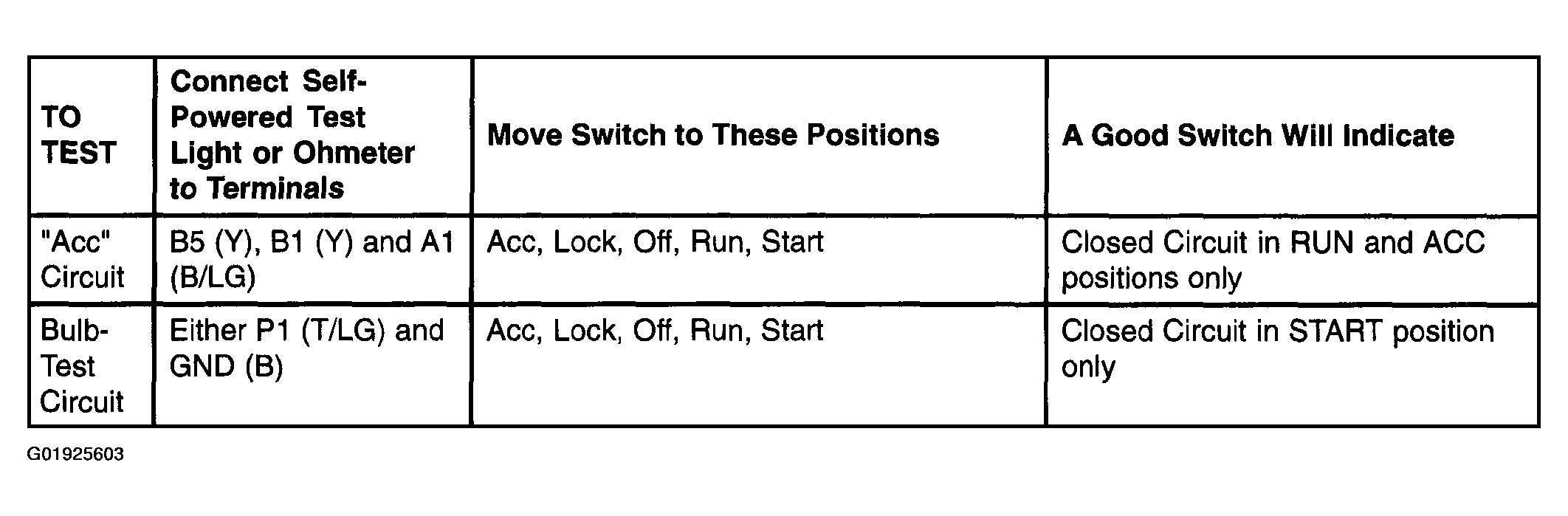

Fig 2: Component Testing Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
