Multi-Function Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the ignition lock cylinder. See IGNITION LOCK CYLINDER REMOVAL/INSTALLATION .
  3. If equipped, remove the tilt wheel handle.
  4. Remove the upper and lower steering column shrouds.
  5. Remove in order shown in figure.
    1. Screws
    2. Connectors
    3. Switch

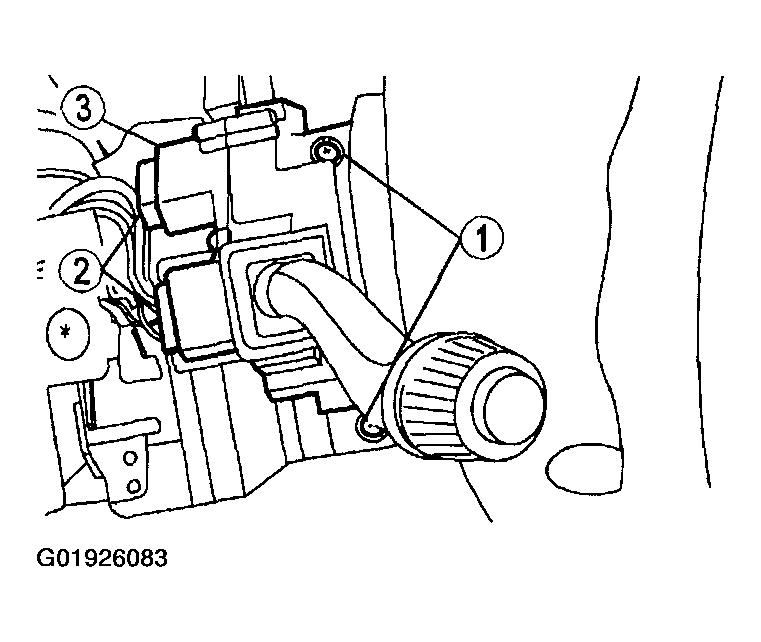

    Fig 1: Removing Multi-Function Switch
    G01926083Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
    1. Tightening torque
    2. 2-3 N.m (18-26 in.lbf)
