Cargo Shade Removal/Installation

  1. Remove the B-pillar trim. See B-PILLAR TRIM (REGULAR CAB REMOVAL/INSTALLATION  , or see B-PILLAR TRIM (CAB PLUS - 2-DOOR) REMOVAL/INSTALLATION  , or see 09-17 B-PILLAR TRIM (4-DOOR) REMOVAL/INSTALLATION  .
  2. Remove the screws (1) (two at each end).
  3. Remove the cargo shade (2).

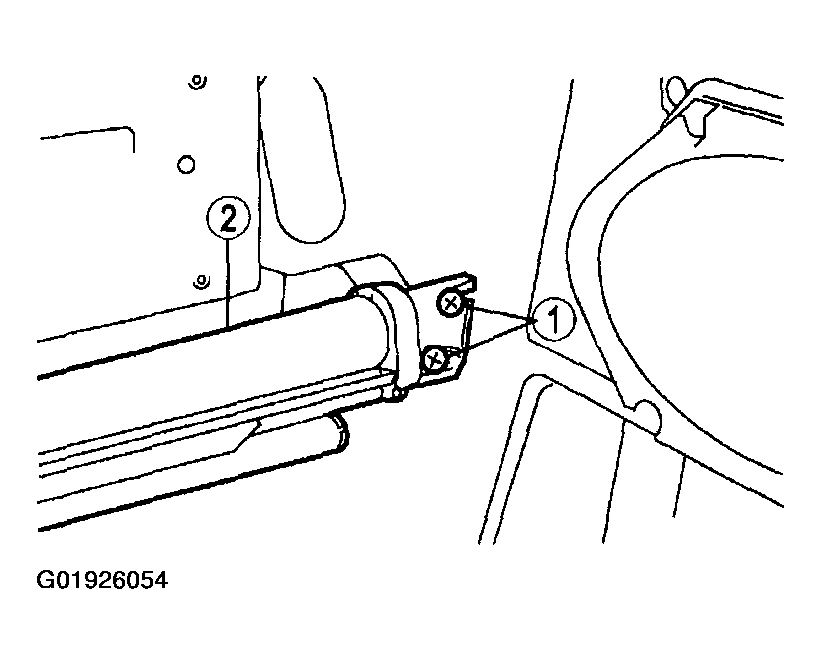

    Fig 1: Removing Cargo Shade
    G01926054Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
