System View - Typical

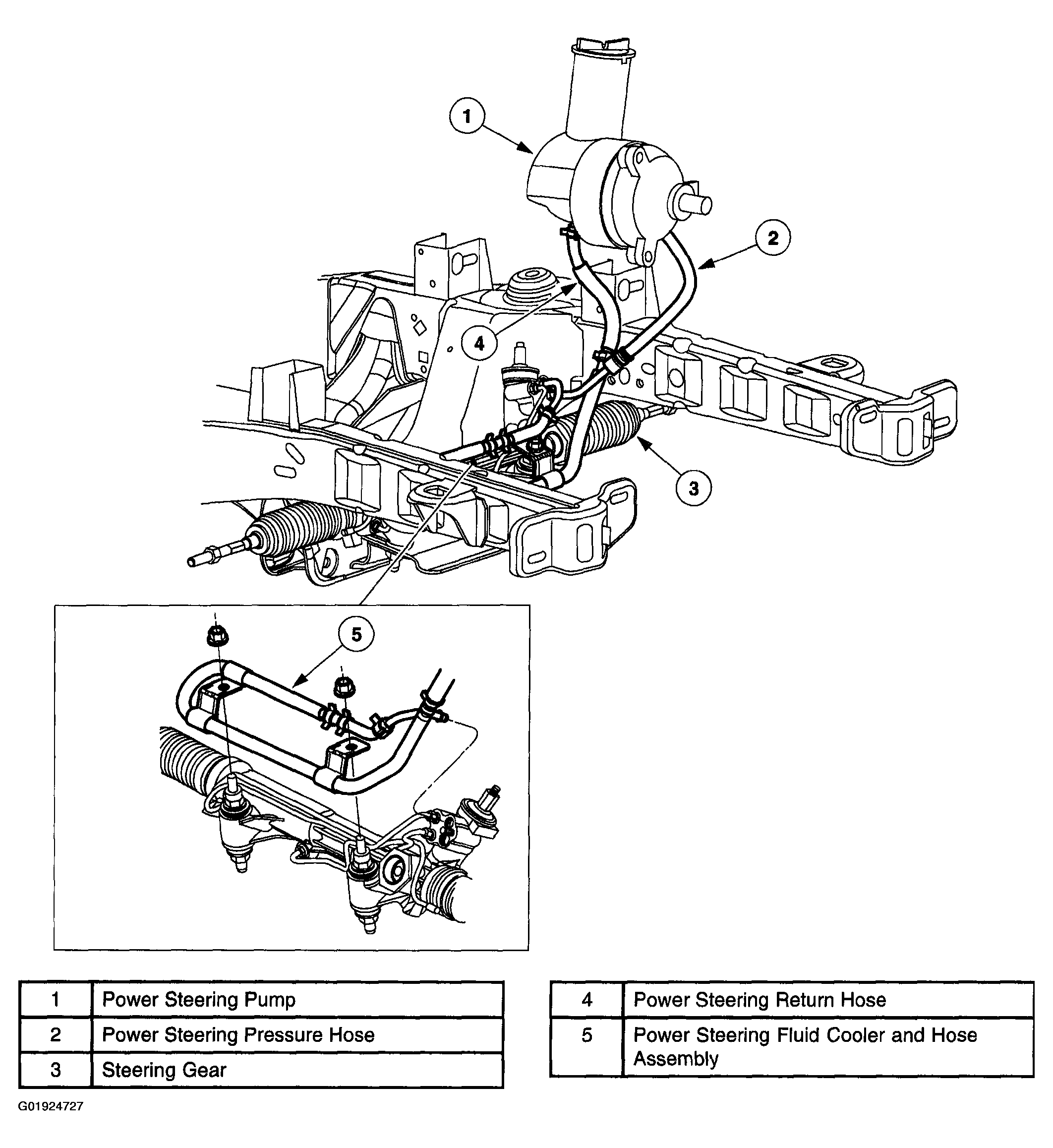

Fig 1: Identifying Power Steering Structural View (4X4)

G01924727

Courtesy of MAZDA MOTORS CORP.
