Propeller Shaft Inspection

WARNING: This page is about a different car, the 2004 Mazda B4000, 2004 Mazda B3000, and 2004 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Whenever the vehicle is raised on a hoist, inspect the universal joint slip yoke boot for rips or holes. Replace if required.

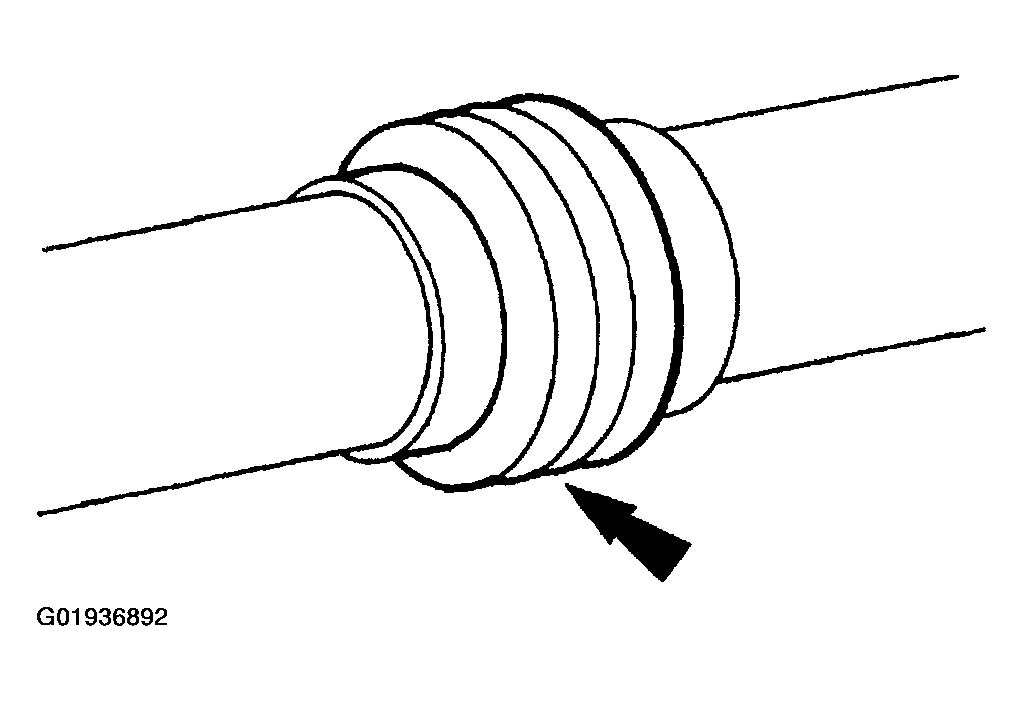

Fig 1: Locating Universal Joint Slip Yoke Boot
Courtesy of MAZDA MOTORS CORP.

NOTE:

All propeller shafts are balanced. If undercoating the vehicle, protect the propeller shaft and universal joints to prevent application of any undercoating material.

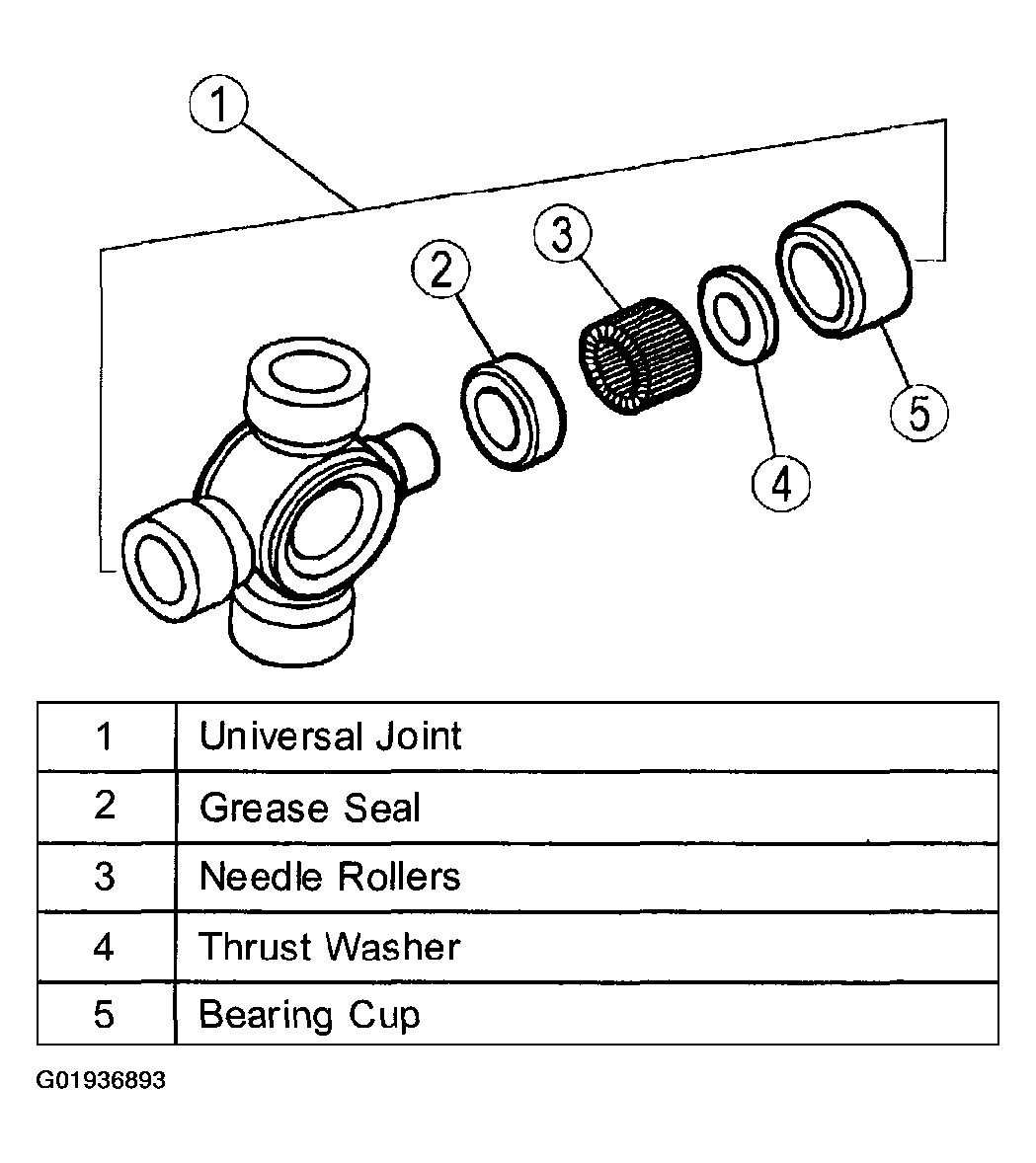

Fig 2: Universal Joint Components
Courtesy of MAZDA MOTORS CORP.
