Propeller Shaft Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When replacing with a new propeller shaft, mark the companion flange to match the position of the tag on the propeller shaft.

Before removing the propeller shaft, make alignment marks on the yoke and differential companion flange.

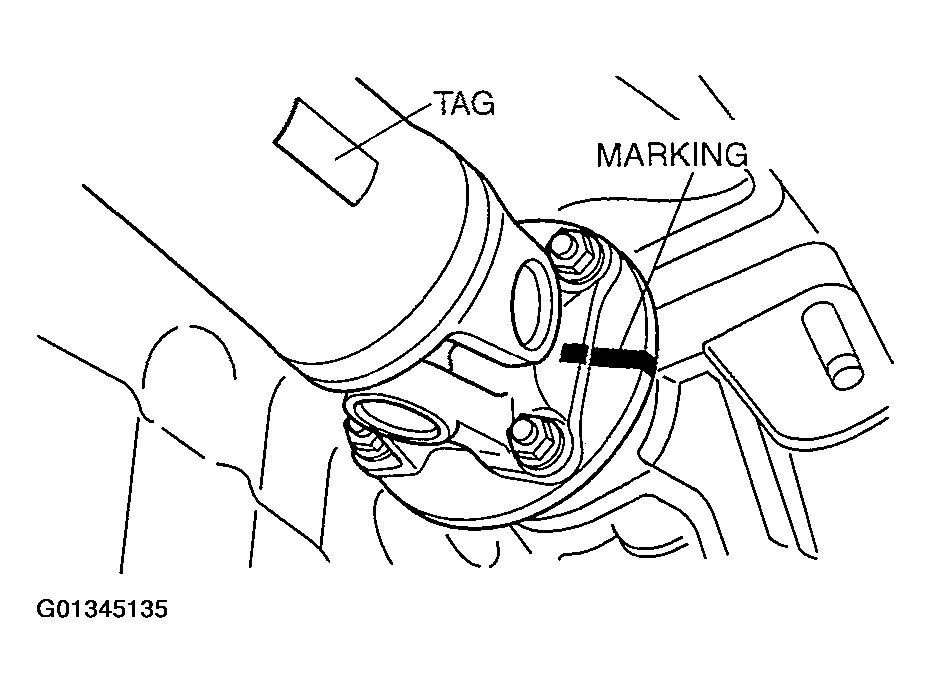

Fig 1: Locating Alignment Marking & Tag
Courtesy of MAZDA MOTORS CORP.
Insert a slab of wood behind the rear differential, and remove the propeller shaft.

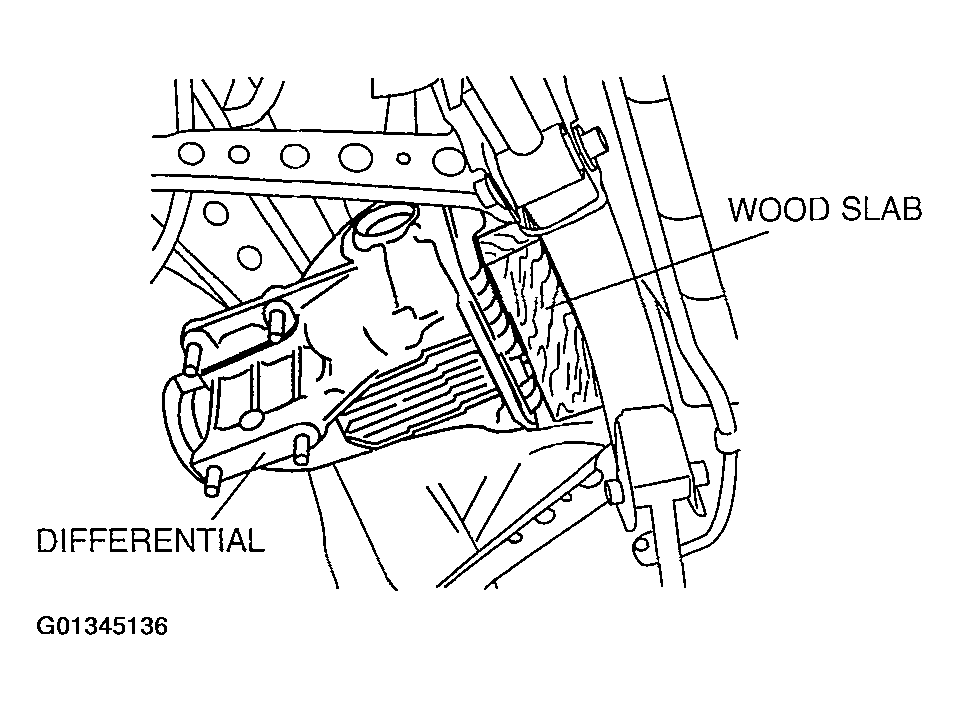

Fig 2: Locating Wood Slab For Removal Of Propeller Shaft
Courtesy of MAZDA MOTORS CORP.
Install the SST to the extension housing.

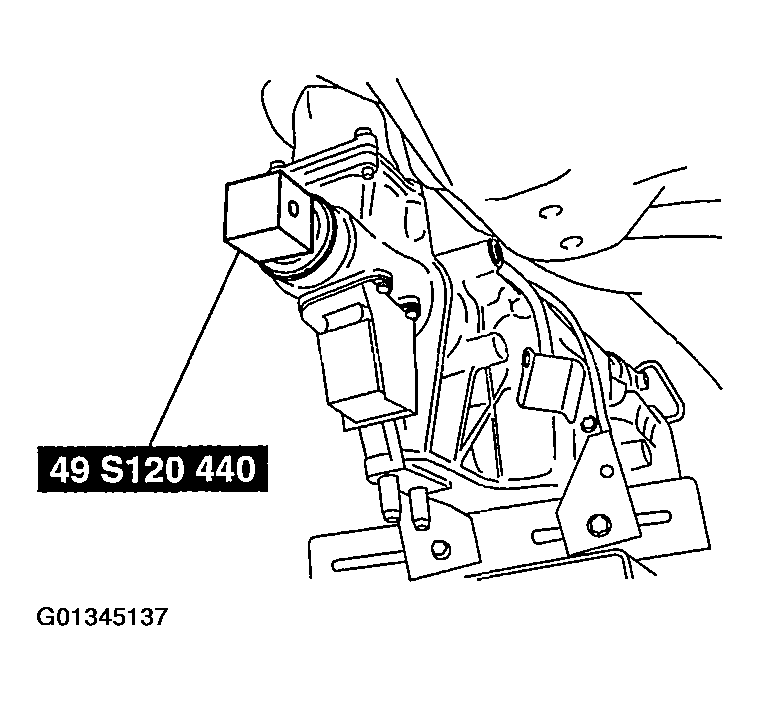

Fig 3: Installing Extension Housing
Courtesy of MAZDA MOTORS CORP.
