Instrument Cluster Illumination Bulbs Removal/Installation

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION , .
  2. Remove the illumination bulbs.

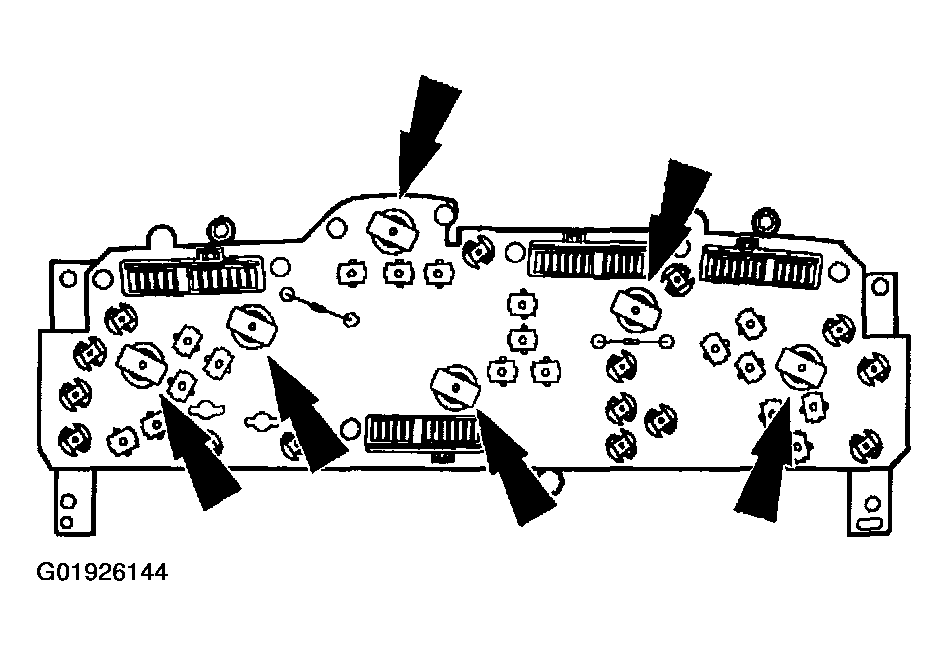

    Fig 1: Removing Illumination Bulbs
    G01926144Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
