Symptom Troubleshooting Chart - Power Outside Mirror

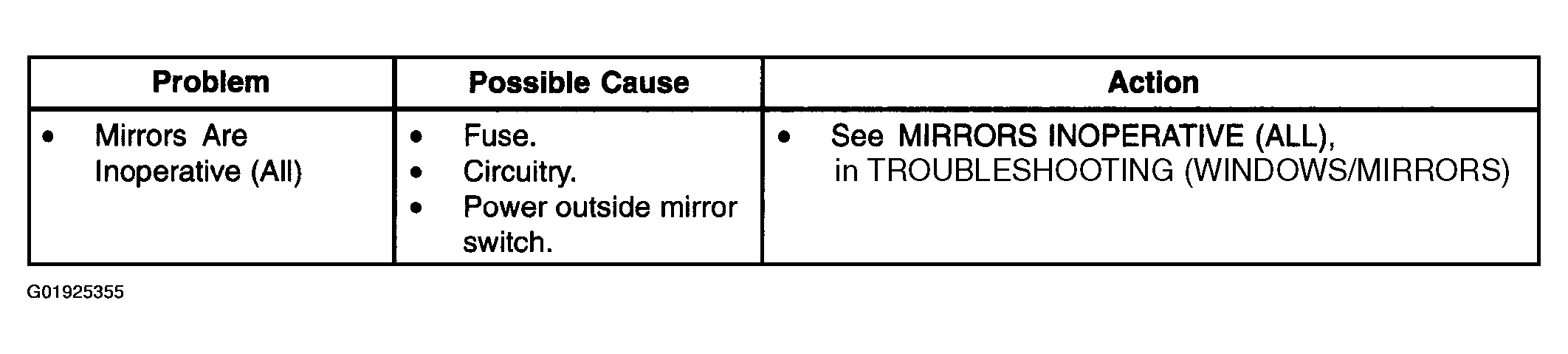

Fig 1: Symptom Troubleshooting Chart - Power Outside Mirror (1 Of 2)
G01925355Courtesy of MAZDA MOTORS CORP.

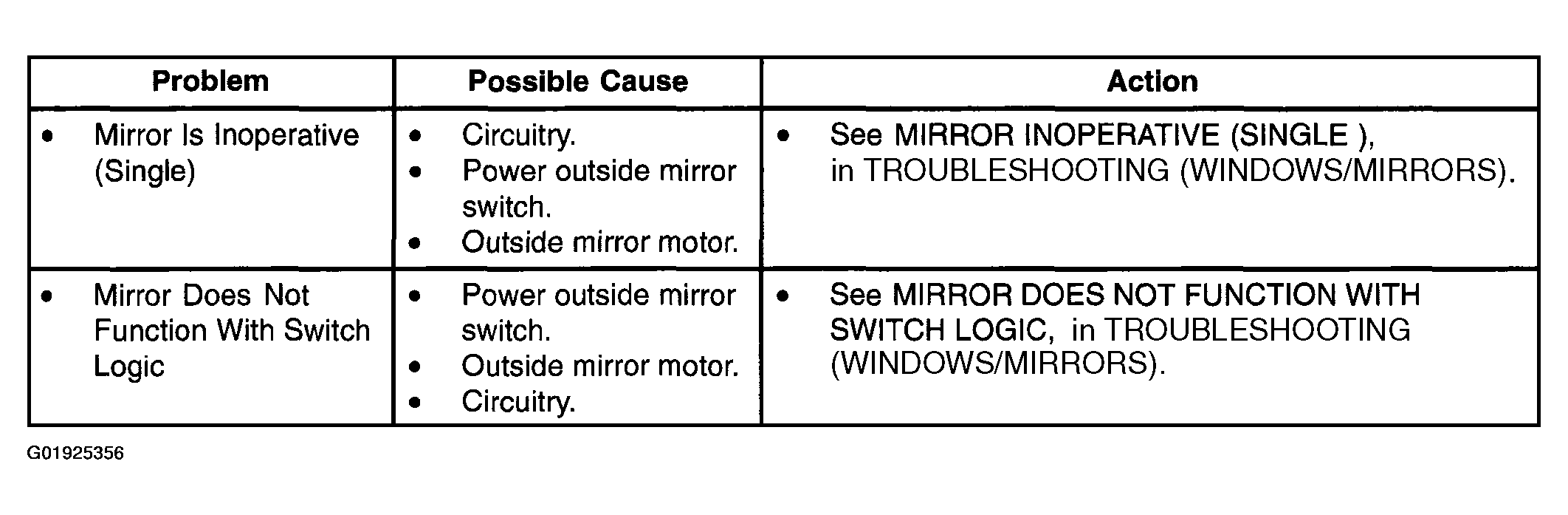

Fig 2: Symptom Troubleshooting Chart - Power Outside Mirror (2 Of 2)
G01925356Courtesy of MAZDA MOTORS CORP.
