Disassembly Note

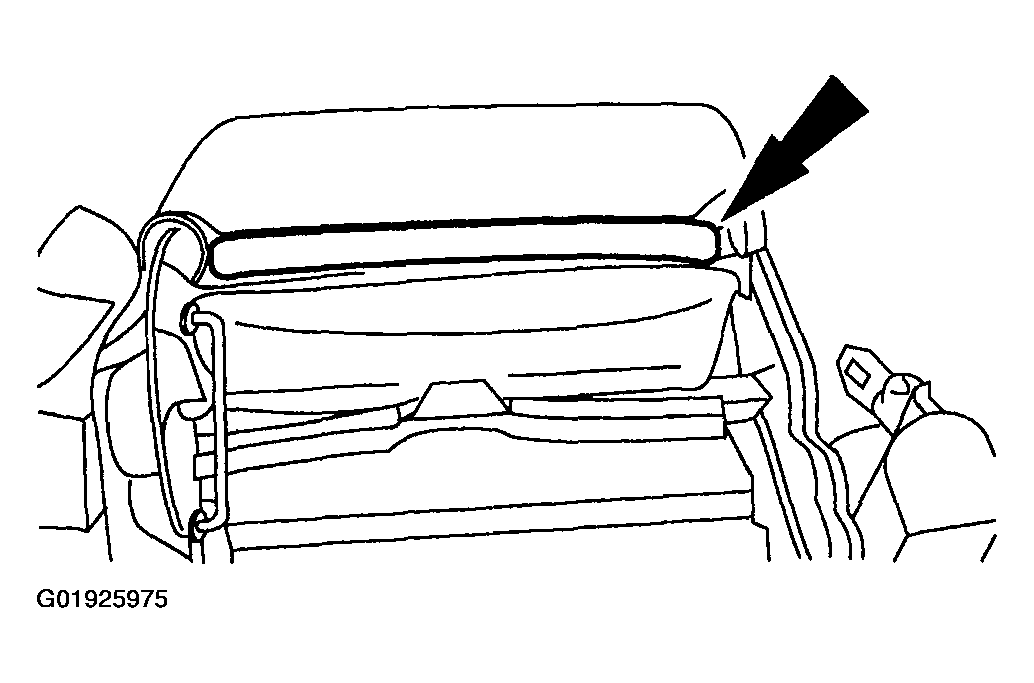

Fig 1: Unhooking Trim Cover Retainer

Courtesy of MAZDA MOTORS CORP.

1. Unhook the trim cover retainer.
   Fig 2: Repositioning Seat Back Trim Cover

   Courtesy of MAZDA MOTORS CORP.
2. Reposition the seat back trim cover.

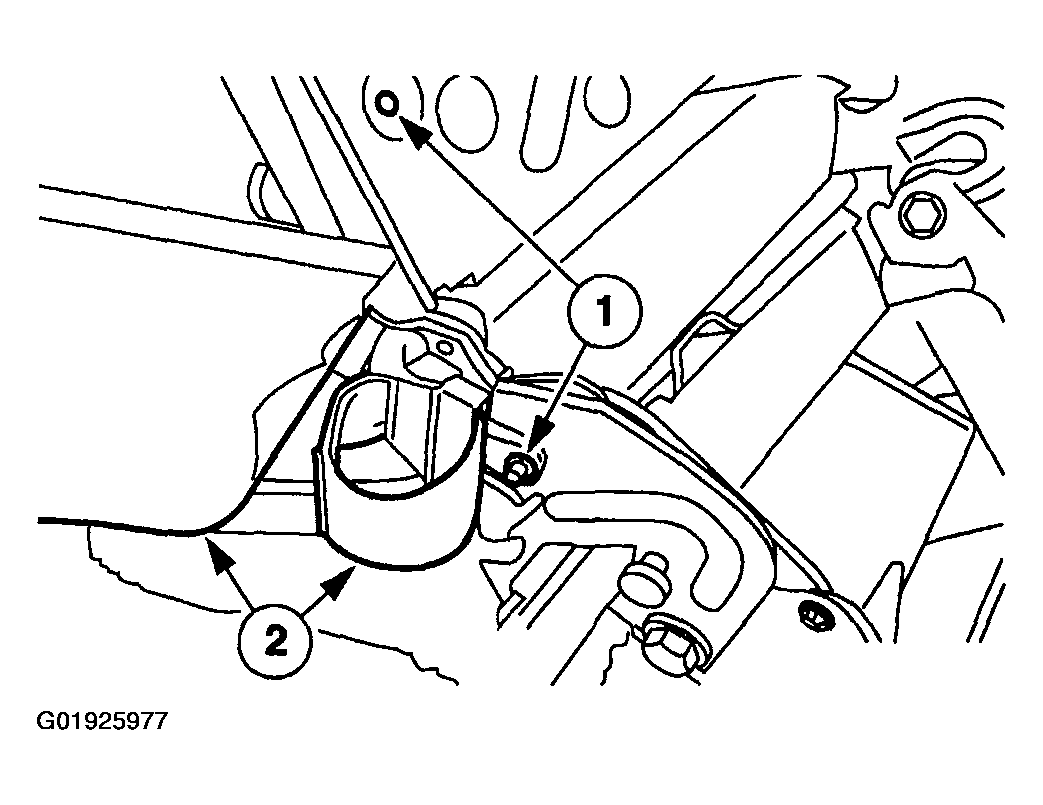

   Fig 3: Removing Seat Back Trim Cover And Safety Belt Buckle

   Courtesy of MAZDA MOTORS CORP.
3. Remove the seat back trim cover and the safety belt buckle.
   1. Drill out the rivets.
   2. Remove the seat back trim cover and the safety belt buckle.
   Fig 4: Removing Seat Back Cushion

   Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • Use care when removing the seat back padding because it may be attached to the seat back frame with adhesive.
4. Remove the seat back cushion.

Assembly Note

1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
