Map/Dome Lamp Assembly Removal/Installation

Disconnect the negative battery cable.
Remove in order shown in figure.
1. Lens
2. Bulb(s)
3. Map/dome lamp assembly

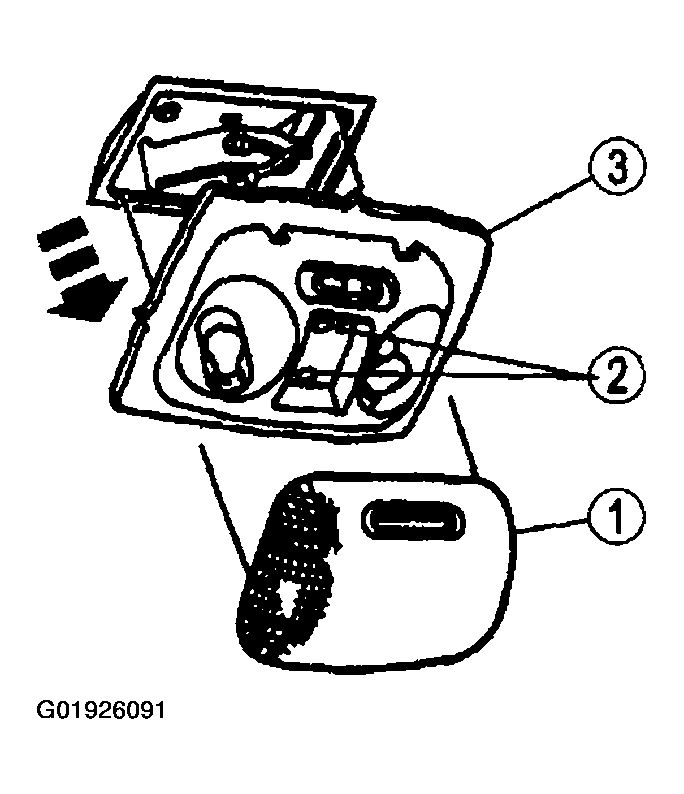

Fig 1: Removing Map/Dome Lamp Assembly
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque
1. 1.6-1.8 N.m (15-17 in.lbf)
